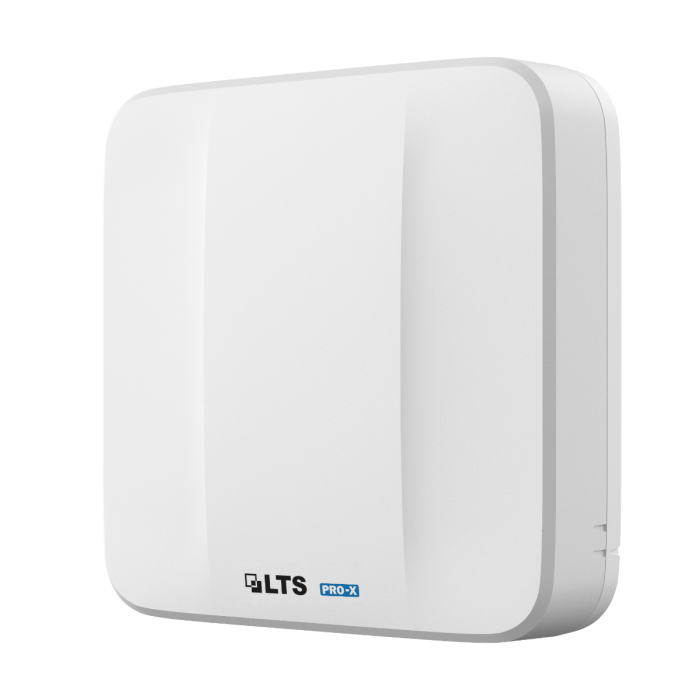

LXKW302-40, 2-Door Web Access Controller

Out of stock

SKU

LXKW302-40

Out of Stock

Pro-X, Access Card Reader, Mifare cards, RS-485 port, Wiegand port, and Bluetooth

Arrive in Q1
Work in main controller mode or sub controller mode with easy escalation of 15 controllers in total, managing maximum 30 doors
Main controller system capacity supports 1000 users, 5000 cards, 3000 fingerprints, and 300,000 records
Multiple verification methods including card, password, Bluetooth, fingerprint and a combination of the above-mentioned.
Built of flame-retardant PC and ABS material, it is both sturdy and elegant with an IK06 rating
Communication with access card readers through Wiegand and RS-485 protocols
Supplies power to locks through its 12 VDC output power supply with a maximum output current of 1000 mA
Supports multiple types of alarm events including duress, tampering, intrusion, unlock timeout, and illegal card
Supports multiple types of users including general, manager, guest, Blocklist, and more
Retains stored data even while powered off
Supports access management and configuration on webpage with the help of built-in server
Features main and sub control modes. The main control mode offers user management, access control device management and configuration, and more options. Devices under sub-control modes can be added to multiple platforms
Watchdog protects the system to allow the device to be stable and perform efficiently
Sub controllers can be added to and managed by software platforms.

Show more Show less

Arrive in Q1
Work in main controller mode or sub controller mode with easy escalation of 15 controllers in total, managing maximum 30 doors
Main controller system capacity supports 1000 users, 5000 cards, 3000 fingerprints, and 300,000 records
Multiple verification methods including card, password, Bluetooth, fingerprint and a combination of the above-mentioned.
Built of flame-retardant PC and ABS material, it is both sturdy and elegant with an IK06 rating
Communication with access card readers through Wiegand and RS-485 protocols
Supplies power to locks through its 12 VDC output power supply with a maximum output current of 1000 mA
Supports multiple types of alarm events including duress, tampering, intrusion, unlock timeout, and illegal card
Supports multiple types of users including general, manager, guest, Blocklist, and more
Retains stored data even while powered off
Supports access management and configuration on webpage with the help of built-in server
Features main and sub control modes. The main control mode offers user management, access control device management and configuration, and more options. Devices under sub-control modes can be added to multiple platforms
Watchdog protects the system to allow the device to be stable and perform efficiently
Sub controllers can be added to and managed by software platforms.

More Information
SKU	LXKW302-40
