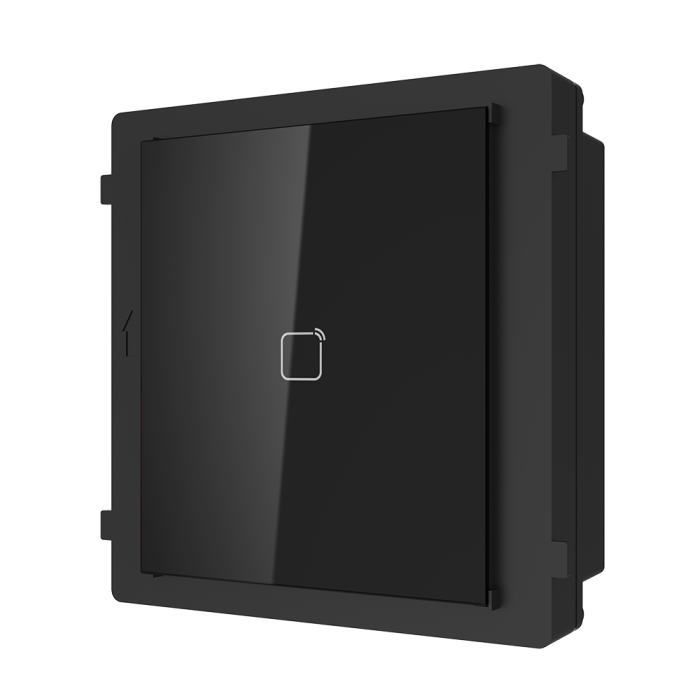

MIFARE Card Reader Module

Model

LTH-M201-MCR

System parameters

Processor

Embedded MCU Processor

Internal card reader

Built-in Card Reader

Interfaces

Module-connecting

2 (1 Input, 1 Output)

General

Card type

MIFARE Card

DIP switches

8

Power input

12 V DC (Powered by the other module)

Power output

12 V DC (Powered for the other module)

Power consumption

≤ 2 W

Operating temperature

-40° to 140° F (-40° to 60° C)

Working humidity

10% to 95%

Protections

IP65

Installation

Flush Mounting, Surface Mounting

Dimensions
(L × W × H)

3.87 × 3.95 × 1.33"  (98.5 × 100 × 33.7 mm)

No.

Description

1

Card Reading Area

2

Module-connecting Interface(output)

3

Module-connecting Interface(input)

4

Debug Port
