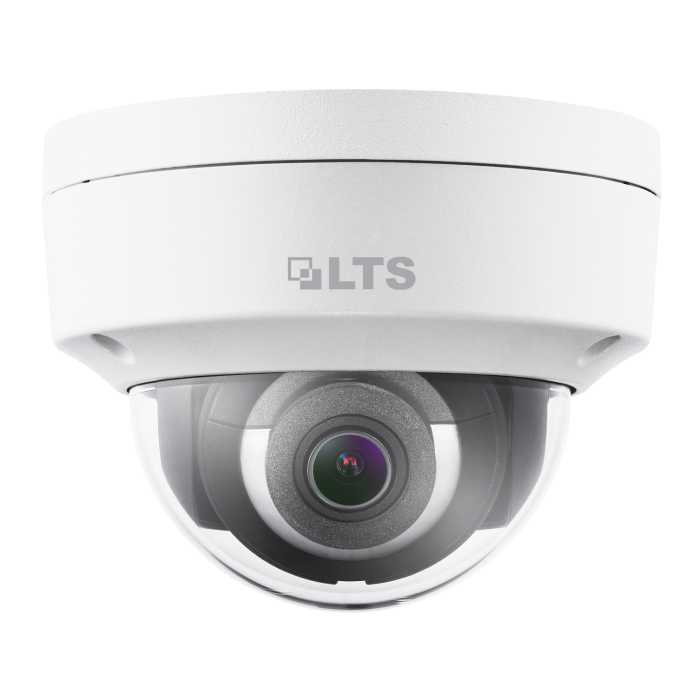

Platinum 6 MP Vandal Dome IP Camera

In stock

SKU

LTCMIP7362W-28M

Out of Stock

6 MP, 3072 x 2048 @ 20 fps, 2.8 mm, Matrix IR 2.0, H.265+, H.264, H.264+ Ready, True WDR 120 dB, IP67 & IK10, MicroSD up to 128 GB, 12V DC, PoE

Show more Show less

More Information

Specifications

Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	0.028 Lux @ f 2.0, AGC on, 0 Lux with IR
Shutter Speed	1/3 to 1/100,000 sec.
Lens	2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	128 dB
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
Video Compression	Main stream: H.264 / H.265 Sub stream: H.264 / H.265 / MJPEG Third stream: H.264 / H.265
H.264 Type	Main Profile / High Profile
H.264 Zip+	Supported
H.265 Type	Main Profile
H.265+	Supported
Video Bit Rate	32 Kbps ~ 16 Mbps
Imaging
Max Resolution	3072 × 2048
Main Stream	50 Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50 Hz: 25 fps (640 × 360, 352 × 288) 60 Hz: 30 fps (640 × 360, 352 × 240)
Third Stream	50 Hz: 25 fps (1280 ×720) 60 Hz: 30 fps (1280 ×720)
Image Enhancement	BLC / 3D DNR
ROI	Supports 1 fixed region for each stream, and face dynamic tracking
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Behavior Analysis	Line crossing detection, intrusion detection
Day / Night Switching	Auto / Scheduled

General
Operating Conditions	-22° - 140° F (-30° - 60° C) Humidity 95% or less (non-condensing)
Power Supply	12V DC
IR Range	Up to 100 ft (30 m)
Protection Level	IP67
Impact Protection	IK10
Dimensions	4.4″ × 3.2″ (Φ 111× 82.4 mm)
Weight	1.1 lb (500 g)
