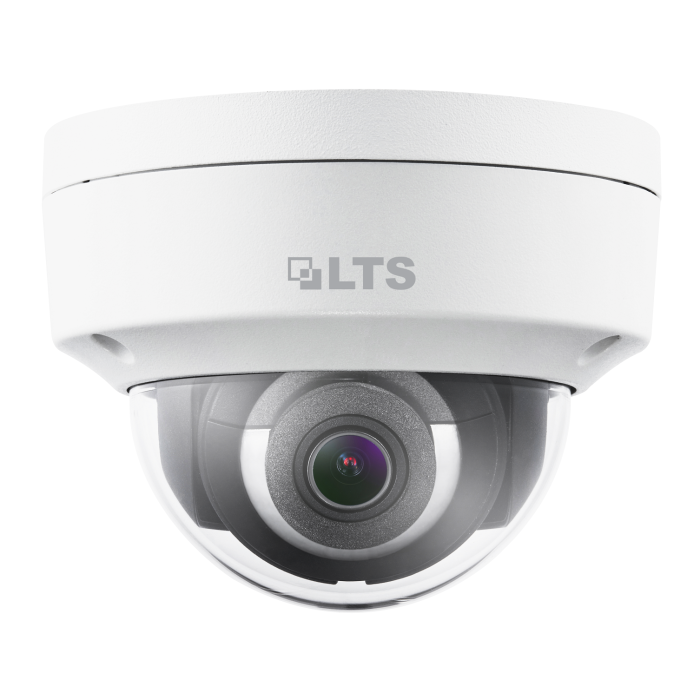

Platinum Network Vandal Dome IP Camera 8MP - 2.8mm

Be the first to review this product

Call for Price

Out of stock

SKU

LTCMIP7382NW-28M

Out of Stock

Platinum Network Vandal Dome IP Camera, 8MP, 2.8mm, True WDR, Matrix IR 2.0, SD card slot

8MP/4K High Definition
Up to 3840x2160@15fps
2.8mm Fixed Lens
Matrix IR 2.0
IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67 & IK10
MicroSD Slot up to 128GB
DC 12V, PoE

Show more Show less

Details

8MP/4K High Definition
Up to 3840x2160@15fps
2.8mm Fixed Lens
Matrix IR 2.0
IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67 & IK10
MicroSD Slot up to 128GB
DC 12V, PoE

Specs

More Information

Specifications

Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.26 5/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Main / High Profile
H.265 Type	Main Profile
Video Bit Rate	32 Kbps ~ 16 Mbps
Dual Stream	Support
Max. Resolution	3840 × 2160
Main Stream	50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288)60Hz: 30fps (640 × 360, 352 × 240)
Others	Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP™,SMTP,SNMP, IGMP,802.1X,QoS,IPv6, Bonjour
General	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Built-in microSD/SDHC/SDXC slot, up to 128 GB
General
Working Temperature /Humidity	-22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 25%,PoE(802.3af)
Power Consumption	Max. 5.5W (Max. 7.5W with ICR on)
IR Range	Up to 100ft (30m)
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ4.4″ × 3.2″ (Φ111 × 82.4 mm)
Weight	1.1lbs (500g)
