Platinum Turret Network IP Camera 4K - 4mm Previous Platinum Turret Network IP Camera 4K - 4mm
main product photo

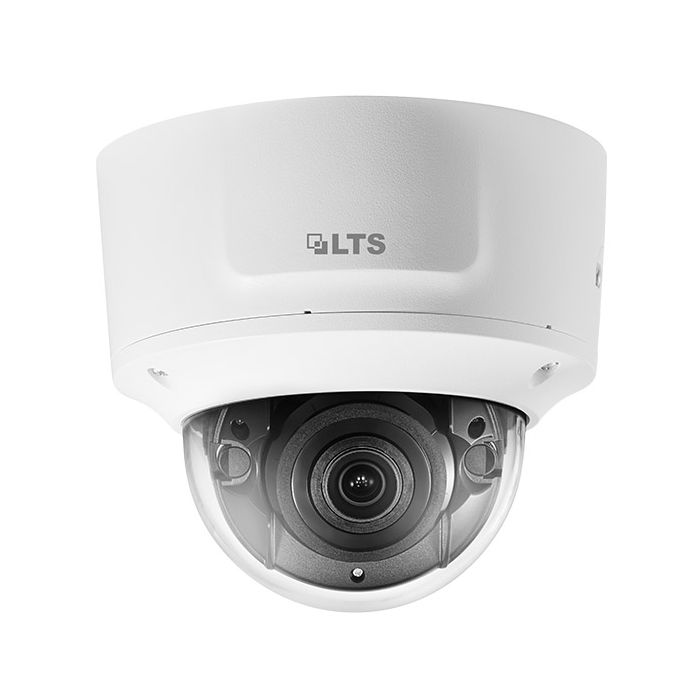

Platinum Varifocal Motorized Dome IP Camera - 4K

Be the first to review this product
Call for Price
Out of stock
SKU
CMIP7883NW-SZ
Out of Stock
Show more Show less
Wish List Compare
  • 8MP/4K High Definition
  • Up to 3840x2160@15fps
  • 2.8-12mm Varifocal Motorized Lens with Smart Focus
  • 0.018 Lux @ F1.6
  • Matrix IR 2.0, IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67 & IK10
  • MicroSD Slot up to 128GB
  • Audio I/O, Alarm I/O
  • DC 12V, PoE
  • Built-in Junction Box
More Information
Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.01 8 Lux @(F 1.6, AG C O N), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8-12mm@F1.4, Motorized Lens, Angle of view：105° to 34.5°
Lens Mount Φ14
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
 Angle Adjustment  Pan:0°~ 355°, Tilt: 0°~ 75°, Rotation: 0°~ 355°
Compression Standards
Video Compression

Main stream: H.265+/H.265/H.264 Zip+/H.264
Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG
Third stream: H.265+/H.265/H.264 Zip+/H.264
H.264/H.264+ Type Main / High Profile
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2
Audio Bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Max Resolution 3840 × 2160
Frame Rate 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240)
Image Enhancement BLC/3D DNR
Image Setting

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Day Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
General
Operating Conditions - 22 °F ~ 140 °F (- 30 °C ~ 60 °C)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.8A max. 10W; PoE (802.3af,36V to 57V), 0.40A to 0.2 A, max. 12W
IR Range Up to 100ft (30m)
Protection Level IP67
Impact Protection IK10
Material Metal
Dimensions Φ 6 .04” × 5.24”(Φ 153.4× 133.1 mm)
Weight 2.84lbs (1287g )
SKU CMIP7883NW-SZ
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Dome
Camera Resolution 4K
User Manual (3.25 MB)
Spec Sheet (1.41 MB)
Spec Sheet (4.72 MB)
