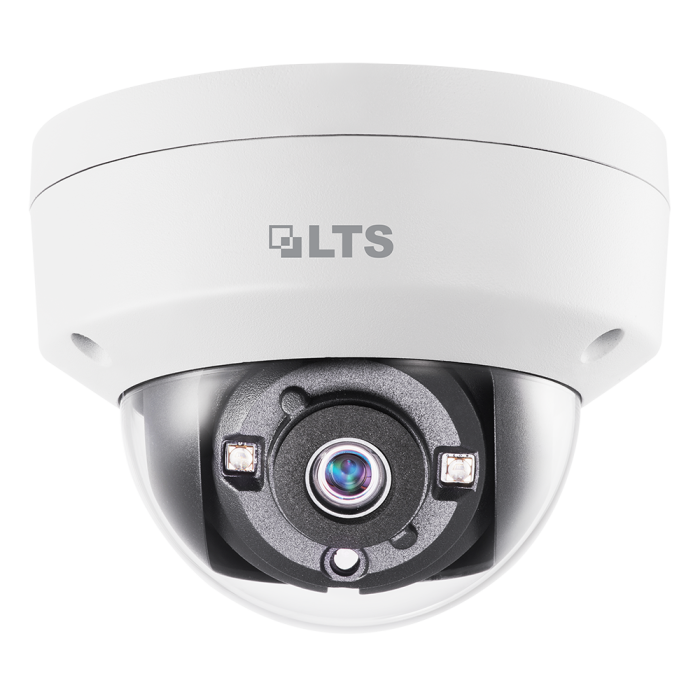

8 MP 4-in-1 Dome Camera

Camera

Image Sensor

8.29 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Frame Rate

TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps

CVBS: 960H P/N

Resolution

3840 (H) × 2160 (V)

Min. Illumination

Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/12.5 s to 1/50,000 s

NTSC: 1/15 s to 1/50,000 s

Lens

3.6 mm fixed lens

Horizontal Field of View

79° (3.6 mm)

Lens Mount

M16

Day & Night

IR cut filter

Angle Adjustment (Bracket)

Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Synchronization

Internal synchronization

DWDR (Digital Wide Dynamic Range)

105 dB

Menu

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

BLC (Backlight Compensation)

Yes

Language

English

Functions

Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

Power Consumption

Max. 5.3 W

Protection Level

IP67, IK10

Material

Metal

IR Range

Up to 98ft(30 m)

Communication

Up the coax, TVI output

Dimensions

Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2" )

Weight

Approx. 495 g (1.09 lb.)
