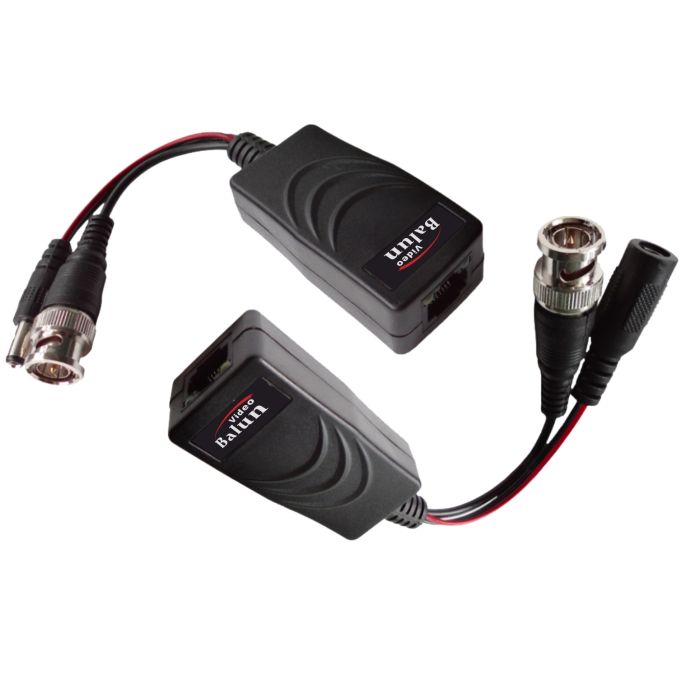

Single Channel HD Video & Power Balun

Be the first to review this product
Call for Price
In stock
SKU
LTAB4030TP
In Stock
Show more Show less
  • Buy 2 for $10.00 each and save 0%
Wish List Compare
  • Real-time transmission over UTP Cat5e / Cat6 cable
  • Compatible with all HD-TVI / CVI / AHD / analog cameras
  • Copper pin BNC connector, connectable style
  • Built-in solid state TVS for surge protection
  • Application diagram
  • Push-pin terminal with pigtail
  • Reduce installation time and easily connect cameras and DVRs
More Information
Specifications
Video Parameters
Video Format HD-TVI / CVI / AHD / CVBS
Operating Frequency DC to 42 MHz
 Max. Distance
HD-TVI
720p 820 ft (250 m)		 HD-TVI
1080p 820 ft (250 m)		 HD-TVI
3 MP 656 ft (200 m)		 HD-TVI
4 MP 656 ft (200 m)		 HD-TVI
5 MP 656 ft (200 m)
HD-CVI
720p 1,443ft (440 m)		 HD-CVI
1080p 754 ft (230 m)		 HD-CVI
4 MP 754 ft (230 m)		 CVBS
1,312 ft (400 m)
HD-AHD
720p 1,049 ft (320 m)		 HD-AHD
960p 1,049 ft (320 m)		 HD-AHD
1080p 820 ft (250 m) 		 HD-AHD
4 MP 656 ft (200 m)		 HD-AHD
5 MP 656 ft (200 m)
Common Mode / Differential Mode Rejection 15 KHz to 42 MHz, 60 dB type
Impedance Coax: Male BNC 75 Ω unbalanced;
UTP: RJ45 100 Ω balanced
Attenuation 1.5 dB typ Max
Wire Type
Network Wiring

One Unshielded Twisted Pair (for each video signal) 24 - 16 AWG (0.5 - 1.31 mm)
Category Type

2 or better
Impedance 100 ± 20 Ω
DC Loop Resistance 52 Ω per 1,000 ft (18 Ω per 100 m)
Differential Capacitance Up to 19 pF / ft  (62 pF / m)
Connectors
Video Channel (In/Out) Male BNC connector
Video Channel (In/Out) RJ45
Mechanical
Housing ABS engineering plastic
Body Color Black
Dimensions 2.38 x 1.14 x 0.80” (60.4 x 29 x 20.4 mm)
(BNC connector & cable excluded)
Net Weight 0.132 lb (60 g)
Power
Power Input 12V DC / 24V AC
Power Transmission 12 V DC / 24V AC, via UTP Cat5e / Cat6. Please refer to power distance chart above.
Environmental
Operating Temperature -4° to 158° F (-20° to 70° C)
Relative Humidity 0 to 95 % ( n o n - c o nde n s i n g )
Storage Temperature -40° to 302° F (-40° to 150° C)
SKU LTAB4030TP
