Passive Video Balun Transceivers Previous Passive Video Balun Transceivers

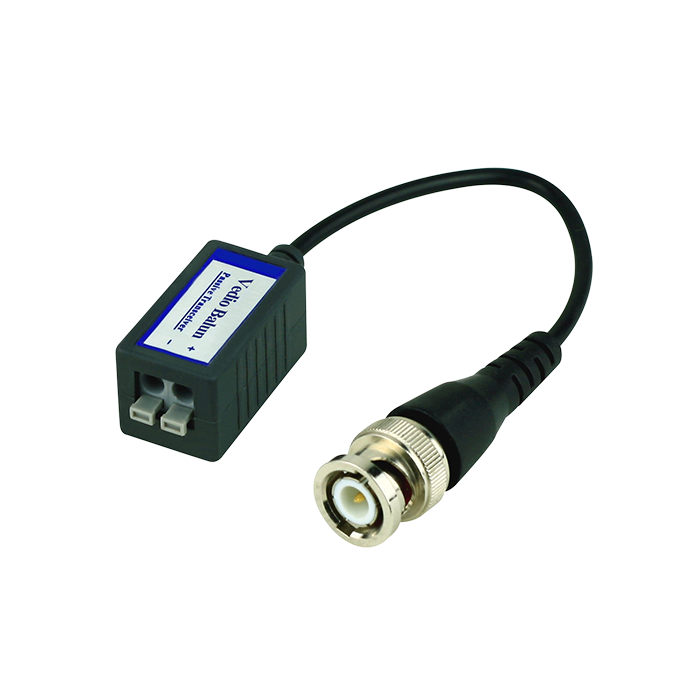

Passive Video Balun Transceivers - Pigtails

Call for Price
Out of stock
SKU
LTAB1015P
Out of Stock
  • Single Channel Passive Video Transceiver
  • PAL/NTSC Real-time Video Transmission
  • Exceptional Interference Rejection and Built-inProtection Setting
  • Convenient Wiring Installation, Higher Cable Utilization Rate and Lower Composite Wiring Cost
  • Compact Size
More Information
Specifications
Video
Frequency  DC To 5MHz
Impedance Coax BNC 75 Ω  ;UTP;100Ω
CMRR 60dB typ
Attenuation 0.5dB typ
Environment
Temperature  Woring Temp:-10℃ ~ +50 ℃
Storage Temp:-30℃ ~ +70 ℃
Wire Type
Humidity 0 ~95%RH
Category Type   UTP CAT5 .23-24AWG
Impedance 9 Ω (100M)

UTP Port
  Terminal Block
Packing
Quantity in Box  2 pcs
Box Dimension  70 x 25 x 22mm
Box Weight  30G
Quantity in Cartons  200pcs /Carton
Cartons Dimension  590*275*435(mm)
Carton Net Weight 9000(g)
Carton Gross Weight 9500(g)
SKU LTAB1015P
