Platinum 8 + 4 MP Panoramic & PTZ IP Camera Previous Platinum 8 + 4 MP Panoramic & PTZ IP Camera

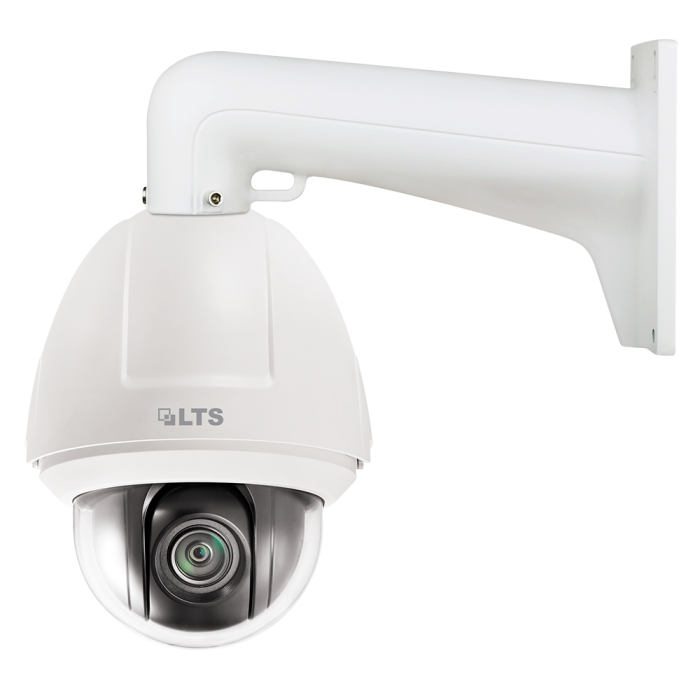

main product photo

Platinum 2 MP TVI 4-Inch Speed Dome

Be the first to review this product
Call for Price
Out of stock
SKU
PTZH212X25W
Out of Stock
Show more Show less
Wish List Compare
  • 2.1MP, Full HD 1080P
  • 1/2.8” CMOS
  • 0.005Lux@F1.6 Ultra Low Light
  • 1920x1080P@30fps
  • 4.8 - 120mm
  • 25x Optical Zoom, Auto Focus
  • 3D intelligent positioning, Privacy Masking
  • 5° to 90°(Auto-flip)
  • True WDR 120dB, 3D DNR, BLC, EIS
  • Alarm I/O
  • BNC Output
  • IK10, IP66, Lightning/Surge Protection
  • AC 24V, Max 20W
  • 4” (Φ)
  • Wall Mount Bracket Included
More Information
Specifications
Camera
Image Sensor  1/2.8" Progressive Scan CMOS
Effective Pixel 1920(H) ×1080(V)
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor
AGC Auto / Manual
WDR ≥ 120dB
Digital Noise Reduction 3D DNR
Backlight compensation BLC
Shutter Speed

PAL: 1/1 s to 1/10,000 s

NTSC: 1/1 s to 1/10,000 s
Day & Night IR Cut Filter
Focus Mode Auto / Semiautomatic / Manual
Privacy Mask 8 programmable privacy masks
Regional Exposure Support
Regional Focus Support
Rapid Focus Support
Lens
Focal Length 4.8 mm to 120 mm, 25× optical
Zoom Speed Approx. 3.2 s (optical, wide to tele)
Angle of View

Horizontal: 57.6°to 2.5° (wide to tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Aperture Range F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range Pan: 360° endless; Tilt: -5° ~ 90° (Auto Flip )
Pan / Tilt Speed

Pan manual speed: 0.1°to 100°/s

Pan preset speed: 100°/s
Proportional Zoom Support
Number of Preset 256
Patrol Scan 10 patrols, up to 32 presets per patro
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
3D Positioning Support
PTZ Position Display ON/OFF
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Preset freezing Support
Input/Output
Video Output 1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC)
RS-485 Interface

Half-duplex mode

Self-adaptive Pelco-P, Pelco-D protocols
UTC function UTC protocol
General
Working Temperature
/Humidity		 -30° C to 65° C (-22° F to 149° F)
Power Supply

24 VAC Max. 20 W
Protection Level

IP66 standard (outdoor dome)

TVS 4,000 V lightning protection, surge protection and voltage transient protection
Dimension

Ø 180 × 239.5 mm (Ø 7.1" × 9.4")
Weight 2 Kg (4.41 Ib.)


SKU PTZH212X25W
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Dome
Camera Resolution 2MP
User Manual (1.79 MB)
Spec Sheet (778.13 kB)
Quick Installation Guide (662.94 kB)
