Model
|
|
LTN8932H-P16
|
|
Video / Audio Input
|
IP video input
|
32 channels
|
|
Up to 12 MP resolution
|
|
Two-way audio
|
1 ch, RCA (2.0 Vp-p, 1 kΩ)
|
|
Network
|
Incoming bandwidth
|
256 Mbps
|
|
Outgoing bandwidth
|
256 Mbps
|
|
Remote connection
|
128
|
|
Video/Audio Output
|
Recording resolution
|
3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; 4CIF
/ DCIF / 2CIF / CIF / QCIF
|
|
CVBS output
|
1 ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576,
NTSC: 704 × 480
|
|
HDMI1 output resolution
|
4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 2K (2560×1440) / 60 Hz, 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
|
|
VGA output resolution
|
2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz, HDMI1 / VGA Simultaneous Output
|
|
HDMI2 output resolution
|
1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
|
|
Audio output
|
1 ch, RCA (Linear, 1 KΩ)
|
|
Decoding
|
Decoding format
|
H.264 / H.264+ / H.265 / H.265+ / MPEG4
|
|
Live view / Playback resolution
|
3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; 4CIF
/ DCIF / 2CIF / CIF / QCIF
|
|
Synchronous playback
|
16 channels
|
|
Capacity
|
2 ch @ 12 MP (20 fps) / 4 ch @ 8 MP (25 fps) / 8 ch @ 4 MP (30 fps) / 16 ch @ 1080p (30 fps)
|
|
Network Management
|
Network protocols
|
TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
|
|
Hard Drive
|
SATA
|
4 x SATA interfaces for 4 x HDDs
|
|
Capacity
|
Up to 8 TB capacity for each HDD
|
|
eSATA
|
1 x eSATA interface
|
|
External Interface
|
Network interface
|
1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
|
|
Serial interface
|
1 x RS-485 (half-duplex), 1 x RS-232
|
|
USB interface
|
Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
|
|
Alarm Channels (in/out)
|
16 / 4 (16 / 8 optional)
|
|
POE
Interface
|
Interface
|
16 x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
|
|
Power
|
≤ 200 W
|
|
Supported standard
|
IEEE 802.3 af / at
|
|
General
|
Power supply
|
100 to 240 V AC
|
|
Total Power
|
≤ 360 W
|
|
Consumption (without hard disk)
|
≤ 20 W (without enabling PoE)
|
|
Operating temperature
|
14° to 131° F (-10° to 55° C)
|
|
Operating humidity
|
10 to 90 %
|
|
Dimensions (W × D × H)
|
17.5 × 15.7 × 2.8" (445 × 400 ×71 mm)
|
|
Weight (without
hard drives)
|
≤ 11 lb (5 kg)
|

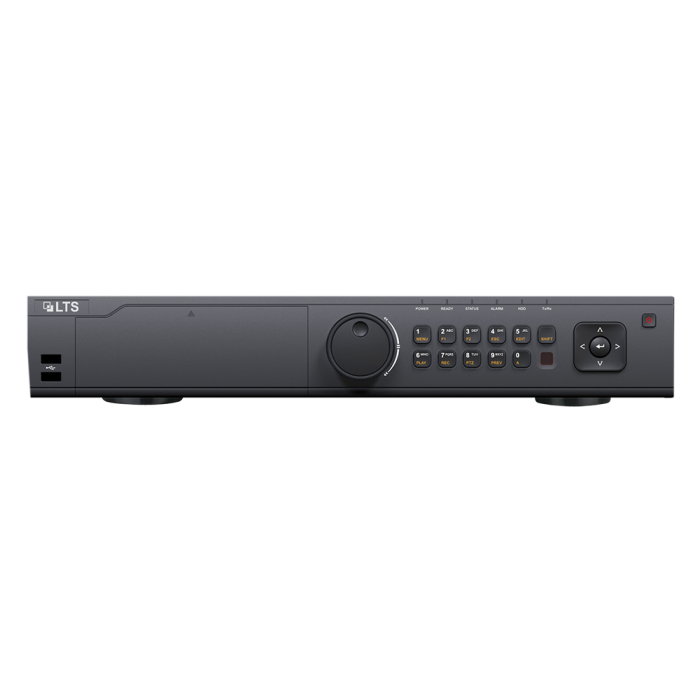

Platinum 16-Channel Enterprise Level NVR
