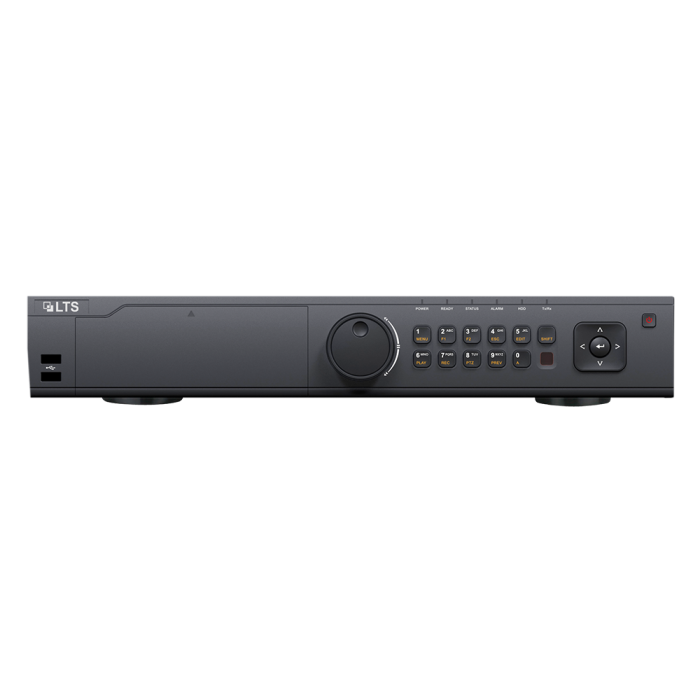

Platinum 16-Channel Enterprise Level NVR

Model

LTN8916H-P16

Video / Audio Input

IP video inputs

16 channels

Up to 12 MP resolution

Two-way audio

1 ch, RCA (2.0 Vp-p, 1 k Ω)

Network

Incoming bandwidth

160 Mbps

Outgoing bandwidth

256 Mbps

Remote connections

128

Video / Audio Output

Recording resolutions

3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p;
VGA; 4CIF, DCIF, 2CIF, CIF, QCIF

CVBS output

1 ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI 1 output resolution

4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz,
2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

VGA output resolution

2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz,
1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz,
HDMI1 / VGA Simultaneous Output

HDMI 2 output resolution

1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz,
1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Audio output

1 ch, RCA (Linear, 1 KΩ)

Decoding

Decoding format

H.264 / H.264+ / H.265 / H.265+ / MPEG4

Live view / playback resolution

3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA;
4CIF, DCIF, 2CIF, CIF, QCIF

Synchronous playback

16 ch

Capability

2 ch @ 12 MP (20 fps) / 4 ch @ 8 MP (25 fps) /
8 ch @ 4 MP (30 fps) / 16 ch @ 1080p (30 fps)

Network management

Network protocols

TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard drives

SATA

4 x SATA interfaces for up to 4 HDDs

Capacity

Up to 8 TB capacity for each HDD

eSATA

1 x eSATA interface

External Interface

Network interface

1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Serial interface

1 x RS-485 (half-duplex), 1 x RS-232

USB interface

Front panel: 2 x USB 2.0
Rear panel: 1 x USB 3.0

Alarm channels (in/out)

16 / 4 (16 / 8 option)

POE

Interfaces

Interfaces

16 x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Power

≤ 200 W

Supported standards

IEEE 802.3 af / at

General

Power supply

100 to 240 VAC

Total power

≤ 360 W

Consumption (without hard drive)

≤ 20 W (without enabling PoE)

Operating temperature

14° to 131° F  (-10° to 55° C)

Operating humidity

10 to 90%

Dimensions (W × D × H)

17.5 × 15.7 × 2.8"  (445 × 400 ×71 mm)

Weight (without hard drive)

≤ 11 lb  (5 kg)
