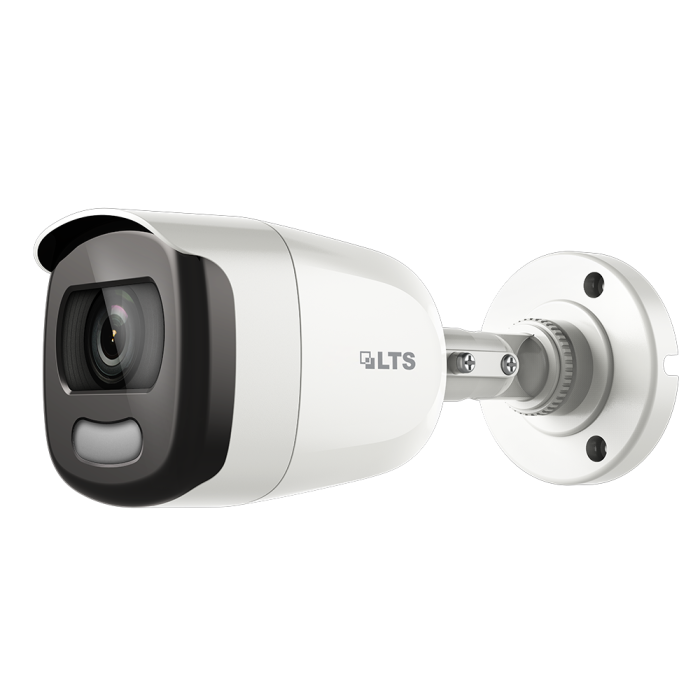

Platinum 2.1 MP Bullet HD-TVI Camera

Camera

Image Sensor

2 MP CMOS image sensor

Resolution

1920 (H) × 1080 (V)

Frame Rate

PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps

Min. illumination

Color: 0.0005 Lux @ (f1.0, AGC on), 0 Lux with white light

Shutter Speed

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Slow Shutter

Max. 16x

Lens

3.6 mm fixed lens

Horizontal Field of View

83.6° (3.6 mm)

Lens Mount

M16

Day & Night

Color

Synchronization

Internal synchronization

Wide Dynamic Range (WDR)

120 dB

Menu

AGC

Yes

White Balance

Auto / Manual

Backlight Compensation (BLC)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Channels

1 HD analog output

Video Output

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ±25%

Power Consumption

Max. 3 W

Protection Level

IP67

Material

Metal

Supplemental Light

White; range up to 66 ft (20 m)

Communication

Up the coax, TVI output

Dimensions

7.14 × 2.75 × 2.68"  (181.4 × 70 × 68 mm)

Weight

Approx. 0.86 lb  (390 g)
