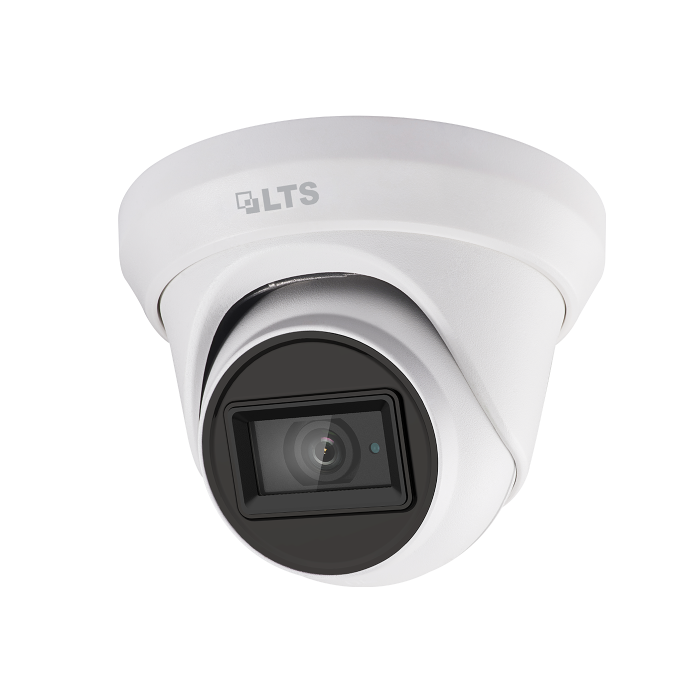

Platinum 5 MP Turret HD-TVI Camera

Be the first to review this product

Call for Price

In stock

SKU

LTCMHT1752WE-28F

In Stock

Ultra-Low Light 5 MP High Performance CMOS, 2560 × 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

5 MP high performance CMOS
2560 × 1944 resolution
2.8 mm fixed lens
Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
3D DNR, 130 dB true WDR
4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
IP67
OSD Menu via UTC technology with Platinum DVR

Show more Show less

Details

5 MP high performance CMOS
2560 × 1944 resolution
2.8 mm fixed lens
Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
3D DNR, 130 dB true WDR
4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
IP67
OSD Menu via UTC technology with Platinum DVR

Specs

More Information

Specifications

*Camera*
Image Sensor	5 MP progressive scan CMOS
Signal System	PAL / NTSC
Resolution	2560 (H) × 1944 (V)
Min. Illumination	Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR
Frame Rates	TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: PAL, NTSC
Shutter Speed	PAL: 1/25 to 1/50,000 sec. NTSC: 1/30 to 1/50,000 sec.
Lens	2.8 mm fixed lens
Horizontal Field of View	98° (2.8 mm)
Lens Mount	M12
Day & Night	IR cut filter
Angle Adjustment (Bracket)	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Synchronization	Internal synchronization
Wide Dynamic Range (WDR)	≥ 130 dB
*Menu*
AGC	Yes
Day / Night Mode	Auto / Color / Black and White
White Balance	Auto / Manual
Backlight Compensation (BLC)	Yes
WDR	Yes
3D DNR	Levels 1 to 9
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable areas
Language	English
Functions	Brightness, Sharpness, 3D DNR, Mirror, Smart IR
*Interface*
Video Output	1 x HD analog output
Output Signals	TVI / AHD / CVI / CVBS
*General*
Operating Conditions	-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensation)
Power Supply	12 VDC ± 25%
Power Consumption	Max. 5.8 W
Protection Level	IP67
Material	Enclosure: Plastic Main body: Metal
IR Range	Up to 197 ft (60 m)
Communication	Up the coax, TVI output
Dimensions	Ø 4.32 × 3.6" (Ø 109.82 × 91.03 mm)
Weight	Approx. 0.68 lb ( 310 g)
