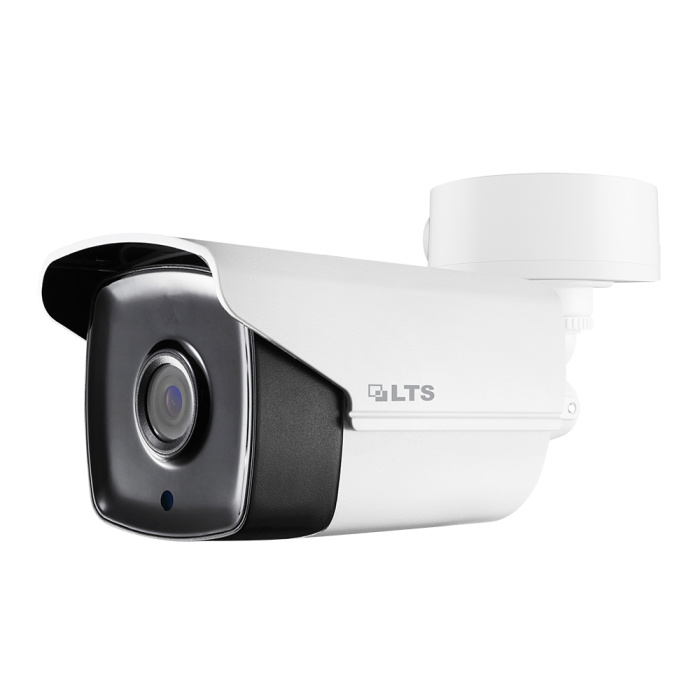

Platinum 5 MP Bullet HD-TVI Camera

Camera

Image Sensor

5 MP progressive scan CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) x 1944 (V)

Min. Illumination

Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR

Frame Rates

TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
CVI: 4 MP @ 25 fps, 4 MP @ 30 fps
CVBS: PAL, NTSC

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Lens

2.8 mm fixed lens

Horizontal Field of View

98° (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

Range of Motion (Bracket)

Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°

Synchronization

Internal synchronization

Wide Dynamic Range (WDR)

≥ 130 dB

Menu

AGC

Yes

Day / Night Mode

Auto / Color / Black and White

White Balance

Auto / Manual

Backlight Compensation (BLC)

Yes

WDR

Yes

3D DNR

Levels 1 to 9

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

Language

English

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Interface

Video Output

1 x HD analog output

Signal Options

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 5.8 W

Protection Levels

IP67

Materials

Metal

IR Range

Up to 197 ft (60 m)

Communication

Up the coax, TVI output

Dimensions

3.22 × 3.41 × 8.58"  (81.9 × 86.7 × 217.9 mm)

Weight

Approx. 1.26 lb  (570 g)
