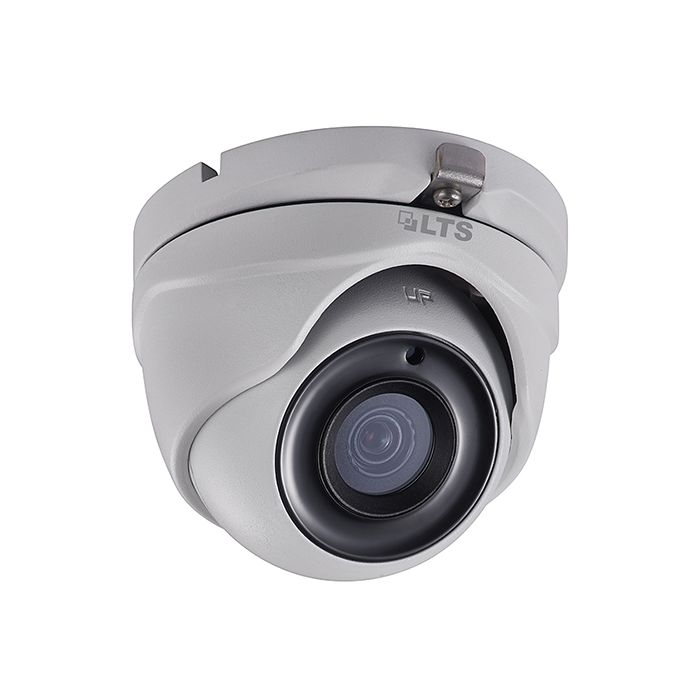

Platinum HD-TVI Mini Turret 5MP Camera

Out of stock

SKU

LTCMHT1352N

Out of Stock

Discontinued. 5MP, 3.6mm fixed, 0.01Lux, 2560X1944@20fps, IP67, 2 Matrix IR2.0 to 65ft,Smart IR, DC12V

Show more Show less

More Information

Specifications

CAMERA
Image Sensor	1/2.7" CMOS
Signal System	NTSC/PAL
Effective Pixels	2560(H)*1944(V)
Min. Illumination	0.01 Lux, 0 Lux with IR
Lens	3.6mm; FoV: 94°
Shutter Speed	1/30 (1/25) to 1/50,000 s
Day & Night	ICR
Synchronization	Internal
Video Frame Rate	2560 x 1944@20fps
HD Video Output	1 HD-TVI Output
Switch Button	TVI/AHD/CVI/CVBS
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
MENU
AGC	Support
D/N Mode	Color/ BW/ SMART
White Balance	ATW/ MWB
DWDR	Support
BLC	Support
Function	Brightness,Sharpness,Digital noise reduction, Mirror, Smart IR
GENERAL
Working Temperature /Humidity	-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing)
Power Supply	DC 12V
Power Consumption	Max. 5W
Weather Proof Ratings	IP67
IR Range	Up to 66ft (20m)
Dimensions	3.6 ”×3.3”×2.7” (91.0×82.6 × 68.3mm)
Weight	0.8lb(350g)

SKU

LTCMHT1352N

Camera Technology

HD-TVI

Camera Series

Platinum Series

Camera Housing

Turret

Camera Resolution

5MP
