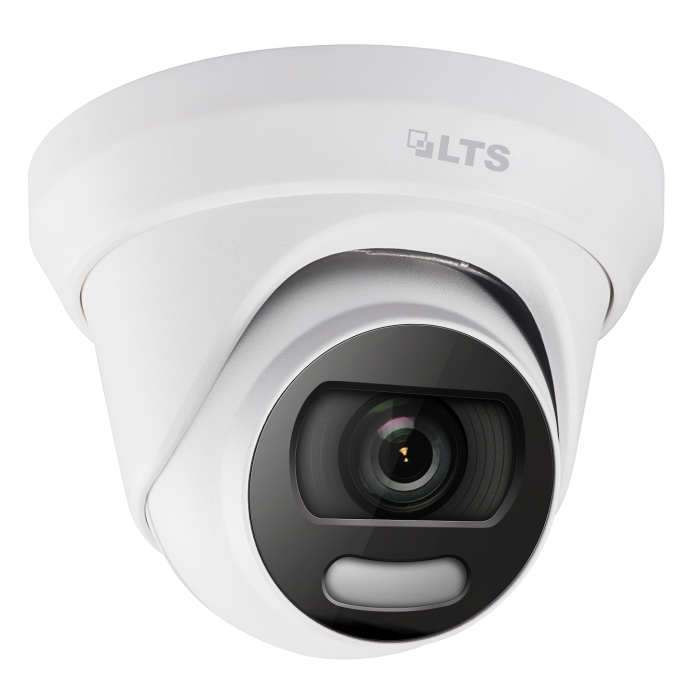

Platinum 2.1 MP Turret HD-TVI Camera

Call for Price
In stock
SKU
LTCMHT1722W-CF
In Stock
  • 2 MP high performance CMOS
  • 1920 × 1080 resolution
  • Full time color
  • 3.6 mm fixed lens
  • Up to 66 ft (20 m) supplemental white light distance
  • 3D DNR, true WDR
  • 4-signals-in-1 video output (TVI / AHD / CVI / CVBS)
  • IP67
  • OSD menu via UTC technology with Platinum DVR
More Information
Specifications

Camera

Image Sensor

2 MP CMOS image sensor

Resolution

1920 (H) × 1080 (V)

Frame Rates

PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps

Min. illumination

Color: 0.0005 Lux @ f 1.0, AGC on, 0 Lux with white light

Shutter Speed

PAL: 1/25 to 1/50,000 sec.

NTSC: 1/30 to 1/50,000 sec.

Slow Shutter

Max. 16x

Lens

3.6 mm, fixed

Horizontal Field of View

83.6°

Lens Mount

M16

Day & Night

Color

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Synchronization

Internal synchronization

WDR (Wide Dynamic Range)

120 dB

Menu

AGC

Yes

White Balance

Auto / Manual

Backlight Compensation
(BLC)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

1 x HD analog output

Signal Options

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensation)

Power Supply

12 V DC ± 25%

Power Consumption

Max. 3 W

Protection Level

IP67

Materials

Main body: metal; mounting base: plastic

Supplemental Light

White, range up to 66 ft (20 m)

Communication

Up the coax, TVI output

Dimensions

Ø 4.32 × 3.37"  (Ø 109.82 × 85.56 mm)

Weight

Approx. 0.74 lb (336 g)

Video
SKU LTCMHT1722W-CF
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 2.1MP / 1080P
