Platinum Dome HD-TVI Camera 5MP - 2.8mm Previous Platinum Dome HD-TVI Camera 5MP - 2.8mm

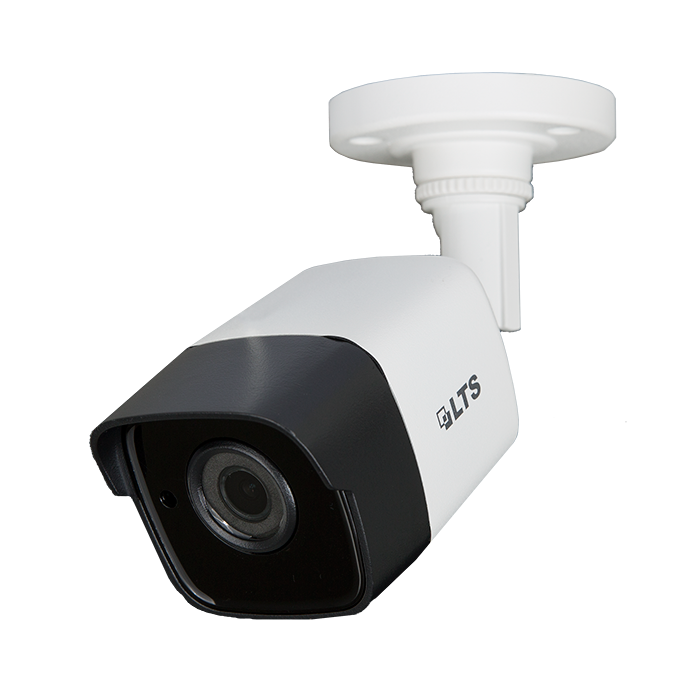

Platinum Fixed Lens Bullet HD-TVI Camera 5MP - 2.8mm

Call for Price
Out of stock
SKU
CMHR6452N-28
Out of Stock
3yr  ovnif  ul listed
  • High Definition Mini Bullet 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 65ft
  • UTC Control to OSD Menu
  • DC 12V
  • IP67
More Information
Specifications
Camera
Image Sensor 1/2.7" CMOS
Signal System NTSC/PAL
Effective Pixels 1928(H)*1088(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Shutter Speed 1/30 (1/25)s to 1/50,000s
Lens 2.8mm, FOV: 103°
Day & Night ICR
Synchronization Internal
Video Frame Rate 1080p@30fps/ 1080p@25fps
HD Video Output/span> 1 HD-TVI Output
S/N Ratio More than 62dB
Menu
AGC Support
D/N Mode Color/BW/Smart
White Balance ATW/MWB
BLC Support
Function True WDR, DNR, Mirror, SMART IR
General
Working Temperature/ Humidity -40 °F - 140 °F (-40 °C - 60° C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 5W
Weather Proof Ratings IP66
IR Range Up to 65ft (20m)
Dimension 2.3” × 2.2” × 6.1" (58.5×55.5×153.6mm)
Weight 0.8lb (370g)
SKU CMHR6452N-28
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 5MP
User Manual (1.15 MB)
SPEC (1.64 MB)
