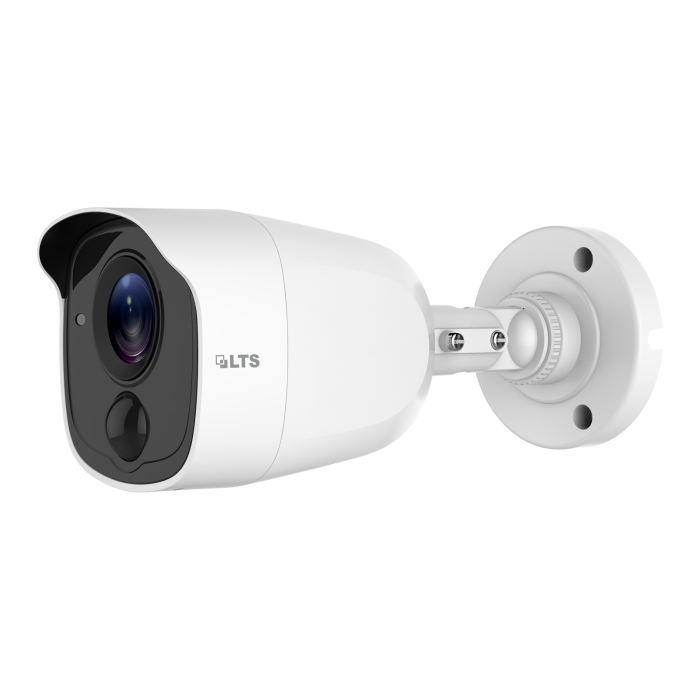

Platinum 5 MP PIR Bullet Camera - 2.8mm

Call for Price
In stock
SKU
CMHR6452N-28PIR
Out of Stock
3yr  ovnif
  • High Definition Bullet 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 66ft
  • UTC Control to OSD Menu
  • DC 12V
  • IP67
  • PIR detection, visual alarm
More Information
Specifications
CAMERA
Image Sensor 5MP CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Lens 2.8mm; FoV: 85.5°
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 Analog Output
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
MENU
White Light Alarm/Off
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
BLC Support
Function Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
GENERAL
Working Temperature
/Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 4.5W
Weather Proof Ratings IP67
IR Range Up to 66ft (20m)
Dimensions  2.68" × 2.76" × 7.08" (68 mm × 70 mm × 179.8 mm )
Weight 0.76 lbs (345g)
Video
SKU CMHR6452N-28PIR
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 5MP
User Manual (857.20 kB)
