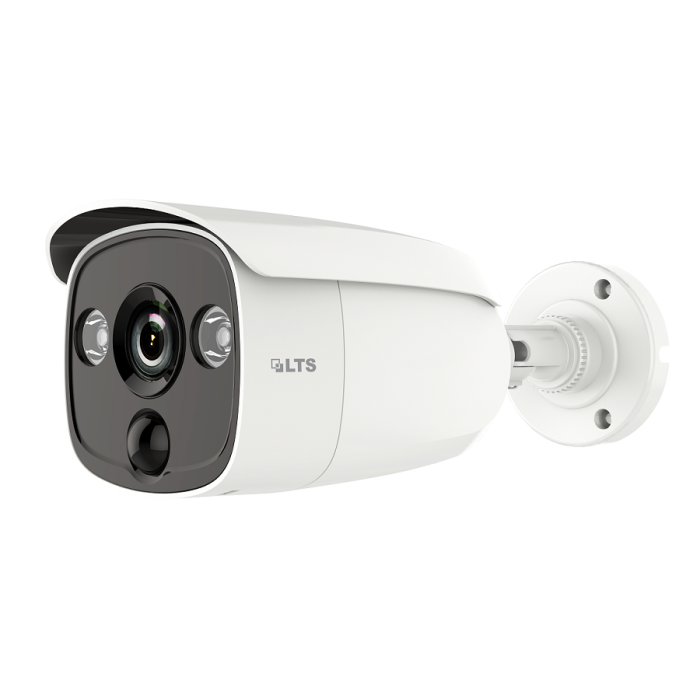

Platinum 5 MP PIR Bullet Camera - 2.8mm Previous Platinum 5 MP PIR Bullet Camera - 2.8mm

Platinum 5 MP Bullet Camera

Call for Price
In stock
SKU
CMHR9252N-28PIR
Out of Stock
  • High Definition Bullet 5 MP HD-TVI Camera
  • 2.8 mm Fixed Lens
  • 2560 x 1944 @ 20 fps
  • 0.01 Lux, Smart IR
  • 2 x Matrix IR 2.0 LED up to 66 ft
  • UTC Control to OSD Menu
  • 12 V DC
  • IP67
  • PIR detection, visual alarm
3yr   ovnif
More Information
Specifications
CAMERA
Image Sensor 5 MP CMOS
Signal System NTSC / PAL
Effective Pixels 2560 x 1944
Min. Illumination 0.01 Lux, 0 Lux with IR
Lens 2.8 mm; FoV: 85.5°
Shutter Speed 1/30 (1/25) to 1/50,000 sec.
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944 @ 20 fps
HD Video Output Single Analog Output
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
MENU
White Light Alarm / Lighting / Off
AGC Supported
D/N Mode Color / B&W / SMART
White Balance ATW / MWB
BLC Supported
Functions Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
GENERAL
Operating Conditions -40° to 140° F (-40° to 60° C)
Humidity 90% or less (non-condensing)
Power Supply 12 V DC
Power Consumption Max. 4.5 W
Protection Ratings IP67
IR Range Up to 66 ft (20 m)
Dimensions 3.49 × 3.20 × 8.85" (88.6 × 81.3 × 224.7 mm )
Weight 0.95 lbs (430 g)
SKU CMHR9252N-28PIR
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Bullet
Camera Resolution 5MP
