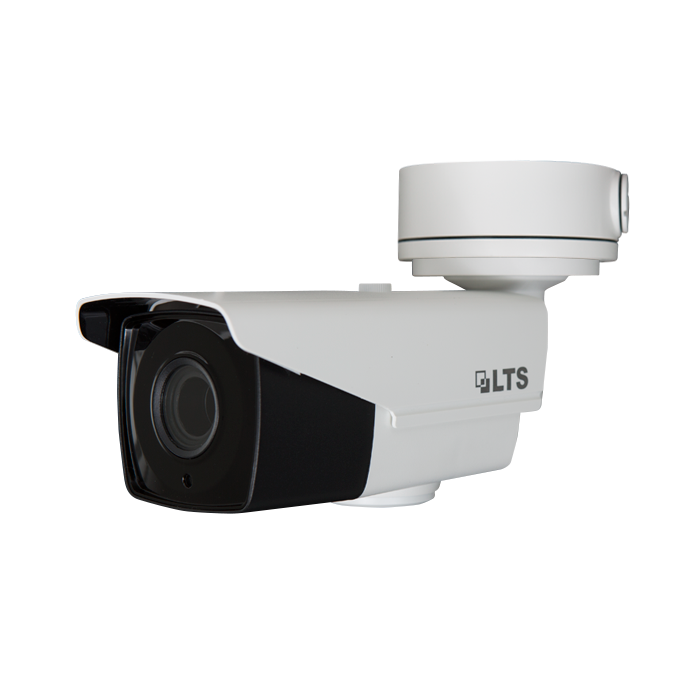

Platinum Motorized Bullet HD-TVI Camera 3MP

Rating:

50 % of 100

1 Review Add Your Review

Call for Price

Out of stock

SKU

CMHR96T3DW-Z

Out of Stock

3MP High Definition, 2.8-12mm Motorized Vairfocal Lens, True WDR 120dB, 6 Matrix IR 2.0 up to 170ft, DC 12V, AC 24V, OSD Menu via UTC technology compatible with TVI DVR, IP66 weatherproof, Junction Box Included, Must be Used with HD-TVI 3.0 DVRs

3MP High Definition
2.8-12mm Motorized Vairfocal Lens
True WDR 120dB
6 Matrix IR 2.0 up to 170ft
DC 12V, AC 24V
OSD Menu via UTC technology compatible with TVI DVR
IP66 weatherproof
Junction Box Included

*Must be Used with HD-TVI 3.0 DVRs

Show more Show less

Details

3MP High Definition
2.8-12mm Motorized Vairfocal Lens
True WDR 120dB
6 Matrix IR 2.0 up to 170ft
DC 12V, AC 24V
OSD Menu via UTC technology compatible with TVI DVR
IP66 weatherproof
Junction Box Included

*Must be Used with HD-TVI 3.0 DVRs

Specs

More Information

Specifications

CAMERA
Image Sensor	1/3" CMOS
Signal System	NTSC/PAL
Effective Pixels	2052(H)*1536(V)
Min. Illumination	0.01Lux, 0 Lux with IR
Lens	2.8-12mm Motorized Varifocal Lens
Shutter Speed	1/30 (1/25) to 1/50,000 s
Day & Night	ICR
Synchronization	Internal
Video Frame Rate	1920x1536@18fps
HD Video Output	1 HD-TVI Output
S/N Ratio	More than 62dB
MENU
AGC	Support
D/N Mode	Color/ BW/ SMART
White Balance	ATW/ MWB
BLC	Support
Function	True WDR, DNR, Mirror, SMART IR
GENERAL
Working Temperature /Humidity	-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing)
Power Supply	DC 12V, AC 24V
Power Consumption	Max. 9W
Weather Proof Ratings	IP66
IR Range	Up to 170ft
Dimensions	3.6" x 3.5" x 10.6" (92.0 x 89.0 x 269.6mm)
Weight	2.0 lbs (900g)
