Platinum 32-Channel Enterprise Level NVR Previous Platinum 32-Channel Enterprise Level NVR
main product photo

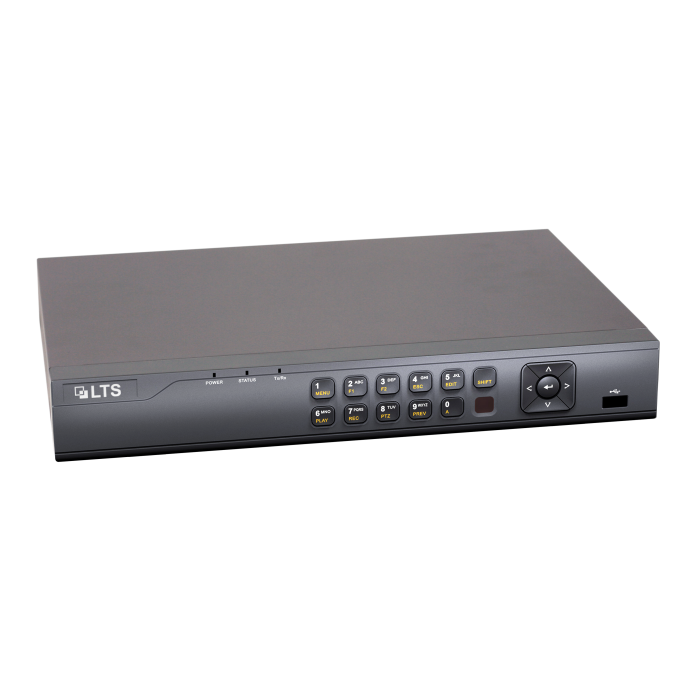

Platinum Advanced Level 4 Channel HD-TVI DVR - Compact Case

Be the first to review this product
Call for Price
Out of stock
SKU
LTD8304T-FT
Out of Stock
Show more Show less
Wish List Compare
  • 4 Channel Digital Video Recorder
  • Analog & HD-TVI Video In: 4CH
  • IPC Input: 1CH 1080P@30fps
  • Video Output: VGA/HDMI up to 1080P
  • Playback Channel: 4CH
  • Audio In/Out: 1CH/1CH, RCA
  • Network: 10/100M
  • Storage: 1 SATA up to 6TB
  • USB: 2 USB 2.0
  • PTZ: 1 RS485
  • Support POS #: 1
More Information
Specifications
Video / Audio input
Video compression H.264
HD-TVI video input 4-ch
Video input interface BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
IP input 1ch(1080p@30fps)
Audio compression G.711u
Audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bit rate 32 Kbps-4 Mbps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
Remote connection 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6TB capacity for each disk
External interface
Network interface 1:10M / 100M self-adaptive Ethernet interface
Serial interface 1; standard RS-485 serial interface, half-duplex
USB port 2 × USB2.0
General
Power supply 12V DC
Power Consumption ≤ 15 W
Working temperature -10 °C~+55°C(14°F ~ 131 °F)
Working humidity 10% ~ 90%
Dimension  315 × 230 × 45 mm (12.4" x 9.1" x 1.8")
Weight ≤ 1.5 kg (3.3 lb)
Video
SKU LTD8304T-FT
Recorder Technology TVI DVR
Recorder Case Compact Case
Recorder Series Others
Recorder Channel 4-Channel
Spec Sheet (122.05 kB)
Quick Start Guide (2.00 MB)
User Manual (5.17 MB)
