Platinum Advanced Level HD-TVI 16 Channel DVR - Efficient Mode Previous Platinum Advanced Level HD-TVI 16 Channel DVR - Efficient Mode
main product photo

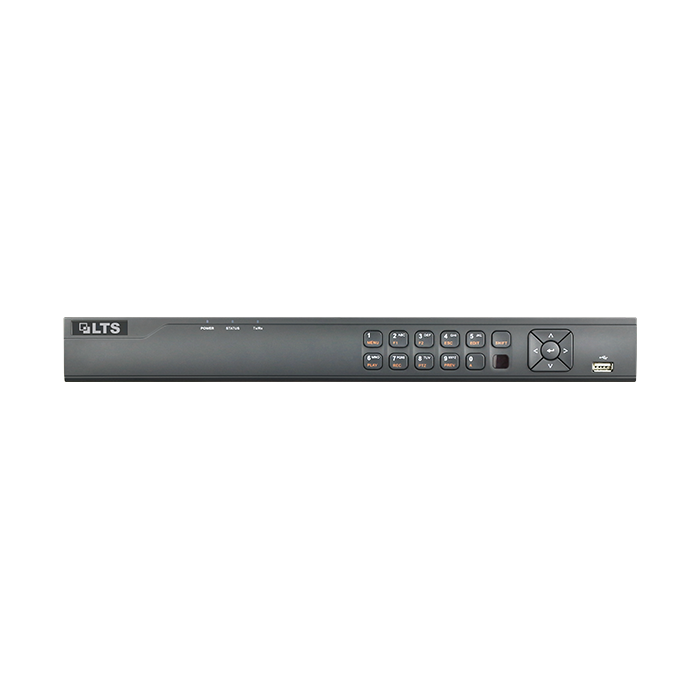

Platinum Advanced Level 16 Channel HD-TVI DVR - Efficient Mode

Be the first to review this product
Call for Price
Out of stock
SKU
LTD8316T-EA
Out of Stock
Show more Show less
Wish List Compare
  • 16 Channel Video Recorder
  • Support Live View, Storage, Playback up to 16 HD-TVI / Analog Cameras + 2 IP Cameras
  • Up to 1080P (1920x1080) HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB each HDD
  • Up to 1080p@30fps with Efficient mode On
  • H.264/H.264 Zip+
  • 1 USB 2.0, 1 USB 3.0
  • Alarm in/out:16/4
More Information
Specifications
VIDEO/AUDIO INPUT
Video Compression H.264 Zip+/ H.264
Video Input 16ch
BNC (1.0 Vp-p, 75Ω), PAL/NTSC self-adaptive
IP Input 2ch (Support ONVIF, up to 2MP resolution)
Audio Compression G.711u
Audio Input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output Up to 2560 x 1440
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ)
Frame Rate Main stream:1/16 fps to real time frame rate
Sub-stream: WD1/4CIF@12fps,CIF/QVGA/QCIF@real time frame rate
Video Bit Rate 32 Kbps-6Mbps
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 16ch
NETWORK
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 2 SATA
Capacity Up to 8TB HDD
EXTERNAL INTERFACE
Network interface 1:10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface RS-485
USB Port 1 X USB2.0, 1 X USB3.0
Alarm In/Out 16/4
GENERAL
Power supply DC12V
Consumption ≤ 30W
Working temperature -10 ° C ~ + 55 ° C(14° F -131° F)
Working humidity 10% ~ 90%
Chassis 1U Chassis
Dimensions (WxDxH) 380 X 320 X 45 mm (15.0 X 12.6 X 1.8 inch)
Weight ≤2Kg (4.4lb)
Video
SKU LTD8316T-EA
Recorder Technology TVI DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
Quick Start Guide (2.43 MB)
Spec Sheet (3.24 MB)
User Manual (11.35 MB)
