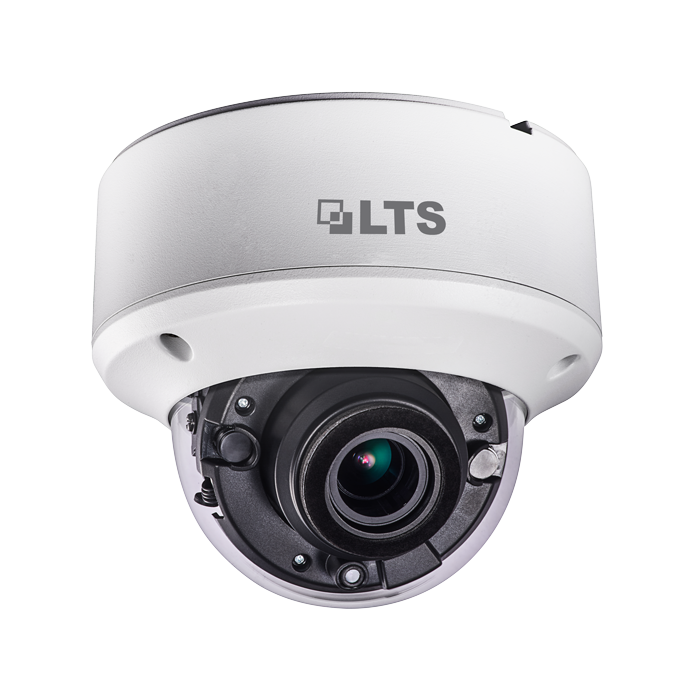

Platinum Motorized VF Vandal Dome HD-TVI Camera 5MP

Out of stock

SKU

CMHD3553DN-ZF

Out of Stock

5MP, 2.7-13.5mm, 2560x1944@20fps, 0.01 Lux, Smart IR, 2 Matrix IR 2.0, UTC, IK10, Vandal-Proof, 3-Axis, DC 12V, AC 24V, IP67,DWDR,4-in-1 Video Output

Show more Show less

More Information

Specifications

Camera
Image Sensor	5MP CMOS
Signal System	NTSC/PAL
Effective Pixels	2560(H)*1944(V)
Min. Illumination	0.01Lux, 0 Lux with IR
Shutter Speed	1/30 (1/25)s to 1/50,000s
Lens	2.7-13.5mm Motorized Varifocal Lens Angle of View: 95.7° to 29.1°
Day & Night	ICR
Synchronization	Internal
Video Frame Rate	2560 x 1944@20fps
HD Video Output/span>	1 HD-TVI Output
Switch Button	TVI/AHD/CVI/CVBS
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Menu
AGC	Support
D/N Mode	Auto/ Color/BW
White Balance	ATW/NWB
DWDR	Support
BLC	Support
Function	Brightness, Sharpness, Digital noise reduction, Mirror ,Smart IR
General
Working Temperature/ Humidity	-40 °F - 140 °F (-40 °C - 60° C) Humidity 90% or less (non-condensing)
Power Supply	DC 12V, AC 24V
Power Consumption	Max 6.0W
Weather Proof Ratings	IP67
IR Range	Up to 131ft (40m)
Impact Protection	IK10
Dimension	Ø 7.1" × 4.9" (Ø 145.2 mm × 124.1 mm)
Weight	1.44lb (655g)
