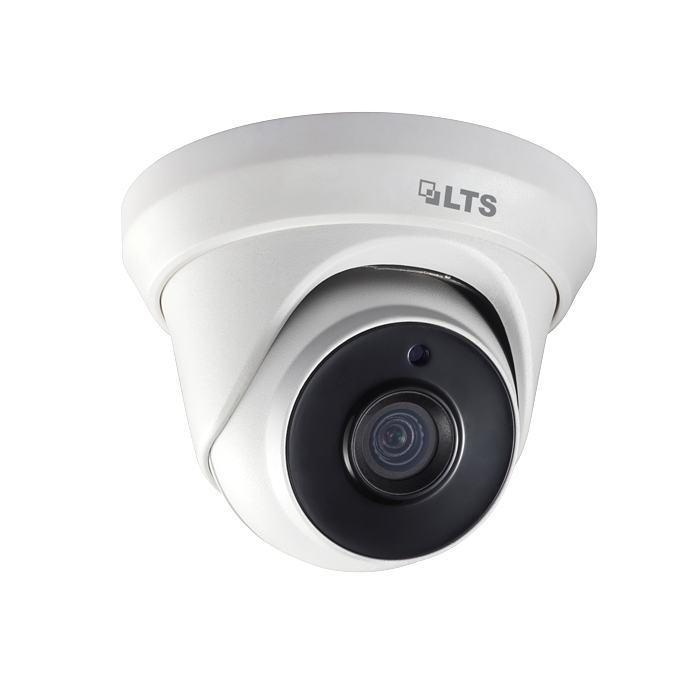

Platinum Fixed Lens Turret HD-TVI Camera 2.1MP - 3.6mm

Be the first to review this product

Call for Price

Out of stock

SKU

LTCMHT1722W

Out of Stock

Discontinued. 2.1MP High Definition, 1920x1080P@30fps, 3.6mm Fixed Lens, True WDR 120dB, 2 Matrix IR 2.0 up to 131ft (40m), DC 12V, OSD Menu via UTC technology with Platinum TVI DVR, IP66 Weatherproof

2.1MP High Definition
1920x1080P@30fps
3.6mm Fixed Lens
True WDR 120dB
2 Matrix IR 2.0 up to 131ft (40m)
DC 12V
OSD Menu via UTC technology with Platinum TVI DVR
IP66 Weatherproof

Show more Show less

Details

2.1MP High Definition
1920x1080P@30fps
3.6mm Fixed Lens
True WDR 120dB
2 Matrix IR 2.0 up to 131ft (40m)
DC 12V
OSD Menu via UTC technology with Platinum TVI DVR
IP66 Weatherproof

Specs

More Information

Specifications

Camera
Image Sensor	1/2.7" CMOS
Signal System	NTSC/PAL
Effective Pixels	1928(H)*1088(V)
Min. Illumination	0.01 Lux, 0 Lux with IR
Shutter Speed	1/30 (1/25)s to 1/50,000s
Lens	3.6mm
Day & Night	ICR
Synchronization	Internal
Video Frame Rate	1080p@30fps/ 1080p@25fps
HD Video Output/span>	1 Analog HD Output
S/N Ratio	More than 62dB
Menu
AGC	Support
D/N Mode	Color/BW/Smart
White Balance	ATW/MWB
BLC	Support
Function	True WDR, DNR, Mirror, SMART IR
General
Working Temperature/ Humidity	-40 °F - 140 °F (-40 °C - 60° C) Humidity 90% or less (non-condensing)
Power Supply	DC 12V
Power Consumption	Max 5W
Weather Proof Ratings	IP66
IR Range	Up to 131ft (40m)
Dimension	3.6” × 3.3” × 2.7." (91.0×82.6×68.3mm)
Weight	0.8lb (350g)
