Platinum Motorized VF Vandal Dome HD-TVI Camera 5MP Previous Platinum Motorized VF Vandal Dome HD-TVI Camera 5MP
main product photo

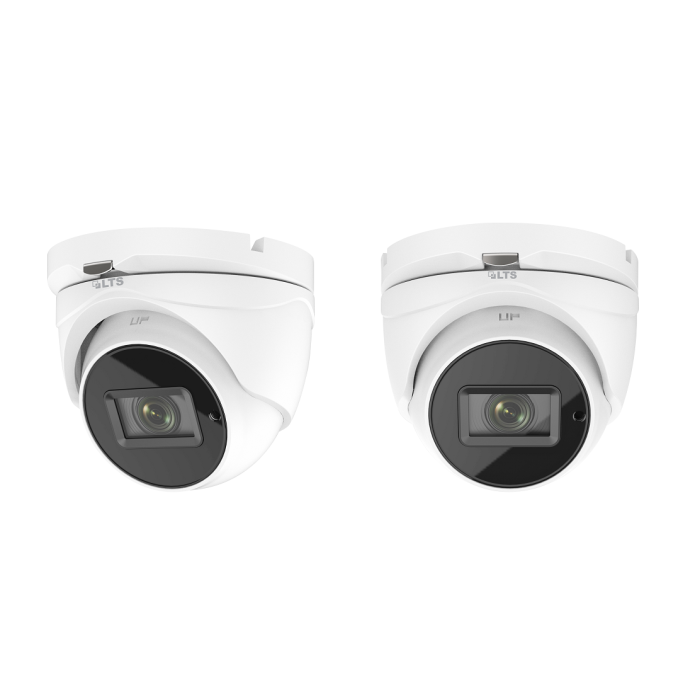

Platinum Motorized VF Turret HD-TVI Camera 5MP

Rating:
100 % of 100
1  Review Add Your Review
Call for Price
Out of stock
SKU
CMHT1953N-ZF
Out of Stock
Show more Show less
Wish List Compare
3yr  ovnif  ul listed
  • High Definition Turret 5MP HD-TVI Camera
  • 2.7-13.5mm Varifocal Motorized Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 6 Matrix IR LED up to 131ft
  • UTC Control to OSD Menu
  • DC 12V
  • IP67
  • 2D DNR, DWDR
  • 4-in-1 Video Output
More Information
Specifications
Camera
Image Sensor 5MP CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01Lux, 0 Lux with IR
Shutter Speed 1/30 (1/25)s to 1/50,000s
Lens 2.7-13.5mm Motorized Varifocal Lens
Angle of View: 95.7° to 29.1°
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output/span> 1 HD-TVI Output
Switch Button TVI/AHD/CVI/CVBS
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Menu
AGC Support
D/N Mode Auto/ Color/BW
White Balance ATW/NWB
DWDR Support
BLC Support
Function Brightness, Sharpness, Digital noise reduction, Mirror ,Smart IR
General
Working Temperature/ Humidity -40 °F - 140 °F (-40 °C - 60° C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max 6.3W
Weather Proof Ratings IP67
IR Range Up to 131ft (40m)
Impact Protection IK10
Dimension 4.88" × 5.29" × 4.38" (123.86 mm × 134.3 mm × 110.11 mm)
Weight 1.28lb (580g)
SKU CMHT1953N-ZF
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 5.0MP
Spec Sheet (808.57 kB)
