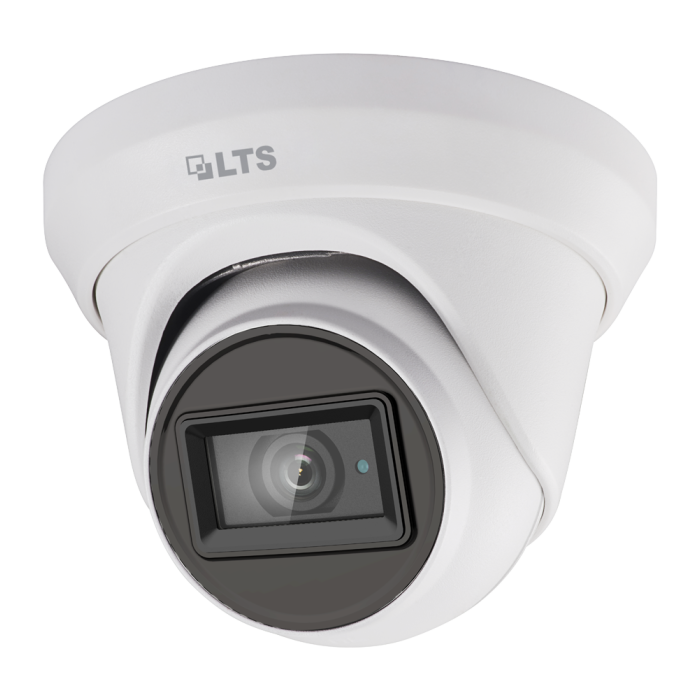

Platinum 5 MP Turret HD-TVI Camera

Camera

Image Sensor

5 MP CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) × 1944 (V)

Frame Rates

TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps

CVI: 4 MP @ 30 fps, 4 MP @ 25 fps

CVBS: PAL / NTSC

Min. illumination

0.01 Lux @ f 1.2, AGC on, 0 Lux with IR

Shutter Time

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Lens

2.8 mm, 3.6 mm fixed lens

Field of View

2.8 mm, horizontal: 85°, vertical: 63°, diagonal: 110°

3.6 mm, horizontal: 80°, vertical: 63°, diagonal:105°

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range (WDR)

Digital WDR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Menu

Image Mode

STD / HIGH-SAT

AGC

Yes

Day / Night Mode

Auto / Color / B & W

White Balance

Auto / Manual

Auto Exposure (AE) Mode

DWDR / BLC / HLC / Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable among TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 4.3 W

Protection Levels

IP67

Materials

Front Cover: Plastic

Main Body: Metal

IR Range

Up to 131ft(40 m)

Communication

Up the coax, TVI output

Dimensions

Φ 4.32 × 3.6"  (Φ 109.82 × 91.03 mm)

Weight

Approx. 0.67 lb.  (303 g)
