Platinum 4 MP Dome Fixed IP Camera - IK10

Be the first to review this product

Call for Price

Out of stock

SKU

LTCMIP7342W-28M

In Stock

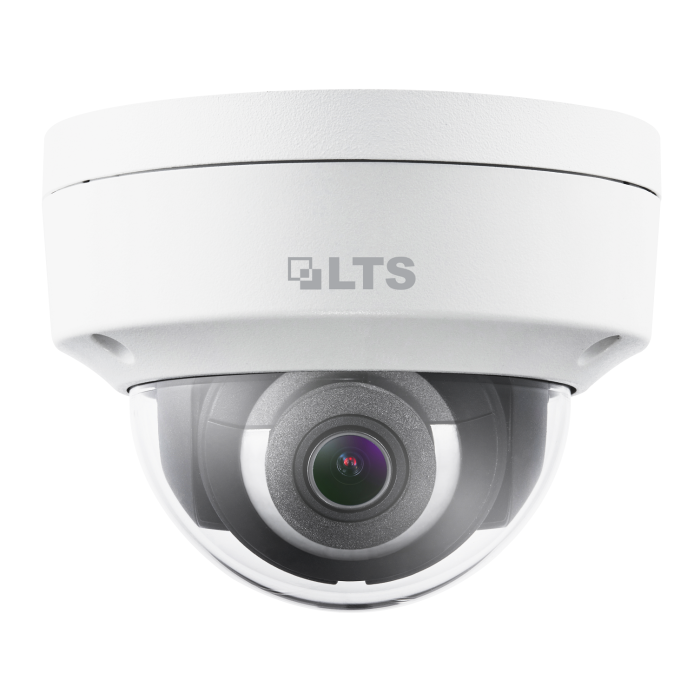

Platinum Vandal Dome IP Camera, 4 MP, 2.8 mm Fixed Lens, IK10 & IP67 Protections

4 MP High Definition
2560 x 1440 @ 30 fps
2.8 mm Fixed Lens
0.018 Lux @ f 1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120 dB
IP67 & IK10
MicroSD storage for cards up to 128 GB
12V DC, PoE

Show more Show less

Details

4 MP High Definition
2560 x 1440 @ 30 fps
2.8 mm Fixed Lens
0.018 Lux @ f 1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120 dB
IP67 & IK10
MicroSD storage for cards up to 128 GB
12V DC, PoE

Specs

More Information

Specifications

Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.018 Lux @ (f 1.6, AGC on), 0 Lux with IR
Shutter Speed	1/3 to 1/10,000 sec.
Lens & Field of View (FOV)	2.8 mm: Horizontal:98°, vertical: 55°, diagonal: 114°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120 dB
Angle Adjustment	Pan:0° - 360°, T ilt: 0° - 75°, Rotation: 0° - 360°
Compression Standard
Video Compression	Main stream: H.265+ / H.265 / H.264 Zip+ / H.264 Sub stream: H.265+ / H.265 / H.264 Zip+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264 Zip+ / H.264
H.264 / H.264+ Type	Main / High Profile
H.265 / H.265+ Type	Main Profile / Sub-stream supported
Video Bit Rate	32 Kbps - 16 Mbps
Dual Stream	Supported
Max. Resolution	2560 × 1440
Main Stream	50 Hz:25 fps (2560 × 1440, 2304 × 1296,1920 × 1080) 60 Hz: 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub Stream	50 Hz: 25 fps (640 × 360, 352 × 288) 60 Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Others	Supports rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Behavioral Analysis	Line crossing detection, intrusion detection
Network
Network Storage	Supports MicroSD / SDHC / SDXC cards (to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Triggers	Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standards	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 x RJ45 10/100 Mbps self-adaptive Ethernet port
Reset	Built-in MicroSD / SDHC / SDXC slot
SVC	H.264 and H.265 encoding
General
Operating Conditions	-22° to 140° F (-30° to 60° C) Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 25%, PoE (802.3 af)
Power Consumption	Max.6 W
IR Range	Up to 100 ft (30 m)
Weather Proof Ratings	IP67
Impact Protections	IK10
Dimensions	Φ 4.4 x 3.2″ (Φ 111 × 82.4 mm)
Weight	1.3 lbs (610 g)
