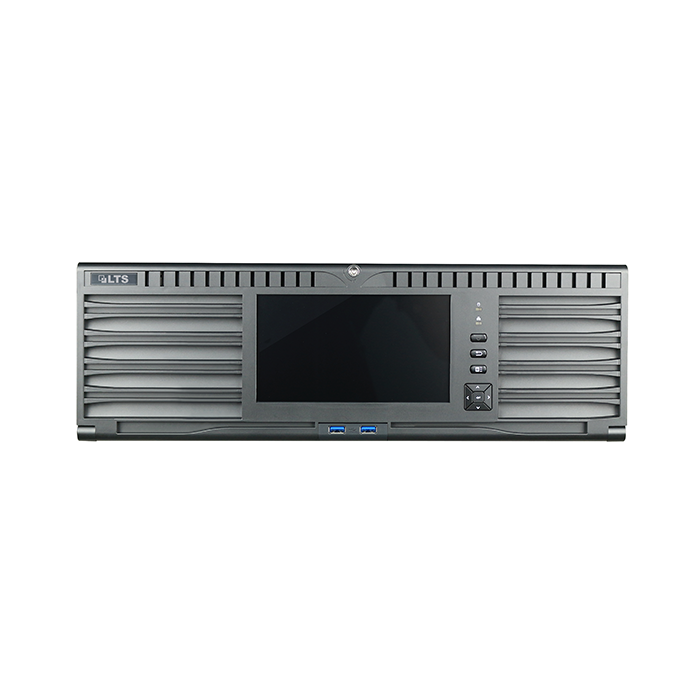

Platinum 256-Channel Enterprise Level NVR

Be the first to review this product

Call for Price

In stock

SKU

LTN07256-R16

In Stock

Platinum, Enterprise Level, 256-Channel NVR, RAID, 3U, Supports 16 x SATA HDDs at up to 10 TB each (no pre-installed storage

Platinum 256 Channel Network Video Recorder
Supports Live View, Recording, Playback up to 12 MP
Quad-Core CPU
Supports 16 x SATA hard disk drives up to 10 TB each
4 x RJ45 10/100/1000 Mbps Ethernet Interfaces
RAID 0, 1, 5, 6, and 10 and Hot Swapping
H.264 / H.264+ / H.265 / H.265+

Show more Show less

Details

Platinum 256 Channel Network Video Recorder
Supports Live View, Recording, Playback up to 12 MP
Quad-Core CPU
Supports 16 x SATA hard disk drives up to 10 TB each
4 x RJ45 10/100/1000 Mbps Ethernet Interfaces
RAID 0, 1, 5, 6, and 10 and Hot Swapping
H.264 / H.264+ / H.265 / H.265+

Specs

More Information

Specifications

Video / Audio Input
IP Video Input	256 Channels
Two-Way audio Input	1 ch, RCA (2.0 Vp-p, 1 kΩ)
Network
Incoming Bandwidth	768 Mbps / 768 Mbps
Outgoing Bandwidth	768 Mbps / 768 Mbps
Remote Connections	256
Video / Audio Output
Recording Resolutions	3, 5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI 1 / VGA 1 Output Resolutions	Two independent HDMI outputs of 4K resolution. Resolutions: 4K (4096 x 2160), 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1080p (1920 x 1080) / 60 Hz, UXGA (1600 x 1200) / 60 Hz, SXGA (1280 x 1024) / 60 Hz, 720p (1280 x 720) / 60 Hz, XGA (1024 x 768) / 60 Hz 1 ch. Resolutions: 1080p (1920 x 1080) / 60 Hz, UXGA (1600 x 1200) / 60 Hz, SXGA (1280 x 1024) / 60 Hz, 720p (1280 x 720) / 60 Hz, XGA (1024 x 768) / 60 Hz
HDMI 2 Output	1 ch, 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
HDMI Outputs (on HDMI Output Extension Board)	1 ch, 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Audio Output	1 ch, RCA (Linear, 1 kΩ)
Decoding
Live View / Playback Resolutions	H.264, MPEG4, M-JPEG
Synchronous Playback	16 channels
Capability	22 ch @ 1080p
Data Storage
SATA	16 x SATA interfaces supporting HDD hot-swapping
Capacity	Up to 10 TB Capacity per HDD
Disk Array
Array Type	RAID 0 / 1 / 5 / 6 / 10
Number of Arrays	16
Interface
Network Interface	4 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Optic Fiber Interface	4 x 1000 Mbps Fiber Optic Interface
Serial Interface	1 x RS-485,Keyboard
USB Interface	Front Panel: 2 x USB 2.0; Rear Panel: 2 x USB 3.0
Alarm Channels (In/Out)	16 / 8
General
Power Supply	100 ~ 240 VAC, 550 W
Consumption	≤ 140 W (without HDDs or DVD-R/W)
Operating Temp.	14º - 131º F (-10º - 55º C)
Operating Humidity	10 - 90%
Housing	19-Inch Rack-Mounted 3U Chassis
Dimensions (W x D x H)	17.4 × 19.4 × 5.7" (442× 494 ×146 mm)
Weight	≤ 35.3 lb (16 kg, without HDDs or DVD-R/W)
