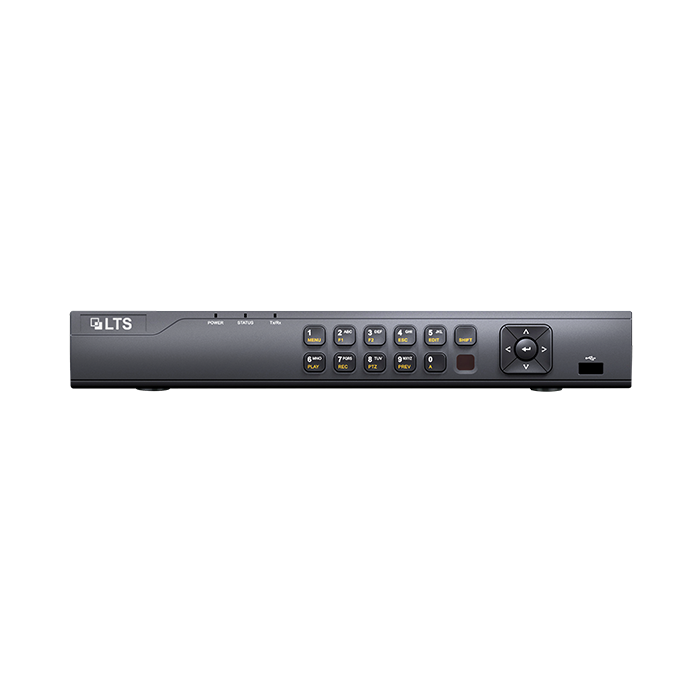

main product photo

Platinum 4 + 4-Channel Hybrid NVR

Rating:
30 % of 100
1  Review Add Your Review
Call for Price
In stock
SKU
LTN8704T-HT
Out of Stock
Show more Show less
Wish List Compare
  • 4 + 4 Channel Hybrid Network Video Recorder
  • Supports Live View, Storage, Playback up to 5 MP IP Camera
  • Supports 4 Channel HD-TVI 3.0 / AHD / Analog
  • Supports 4 Channel IP Camera @ 40 MB Bandwidth
  • 1080p HDMI / VGA Video Output, CVBS Spot Out
  • 1 x SATA HDD up to 6TB Each
  • 4 x Audio In, 1 x Audio Out
  • H.264 / H.264 Zip+
  • 1 x POS
More Information
Specifications
Video/Audio Input
Video/Audio Input H.264 Zip+ / H.264
Video Input 4-CH
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition
Supported HDTVI input 3MP, 1080p/25Hz, 1080p/30Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz
Supported AHD input 720p/30Hz, 720p/25Hz
CVBS input Support
IP input 4-ch(up to 8-ch)
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
HDMI/ VGA output 1 -ch , 19 20 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution 3MP@15fps, 1080p/720p/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704×576, NTSC: 704×480
Frame rate Main stream: 30fps(N)/25fps(P)
Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCI F ( real time)
Video bit rate 32 Kbps-10 M bps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual- stream Support
Stream type Video, Video & Audio
Synchronous playback 4ch
Network
Remote connections 96Mbps
Network protocols TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Drive
SATA 1 SATA
Capacity Up to 6TB capacity for each disk
External Interface
Network Interface 1, RJ45 10M / 100Mself-adapt ive Ethernet interface
Serial Interface 1; RS-485 serial interface, half-duplex
USB Port 2 × USB2.0
Alarm In/Out 4/1
General
Power Supply DC 12V
Consumption ≤ 15W
Working Temperature -10 °C ~ +55 °C(14°F - 131°F)
Working Humidity 10% - 90%
Chassis Compact Casing
Dimension 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight ≤2 Kg (4.4 lb)
SKU LTN8704T-HT
Recorder Technology Hybrid NVR
Recorder Case Compact Case
Recorder Series Platinum Series
Recorder Channel 4-Channel
LTN8704T-HT Spec Sheet (1.74 MB)
LTN8704T-HT Quick Start Guide (3.11 MB)
LTN8704T-HT User Manual (4.15 MB)
