Platinum 4-Channel Advanced Level Hybrid NVR, 1U Previous Platinum 4-Channel Advanced Level Hybrid NVR, 1U

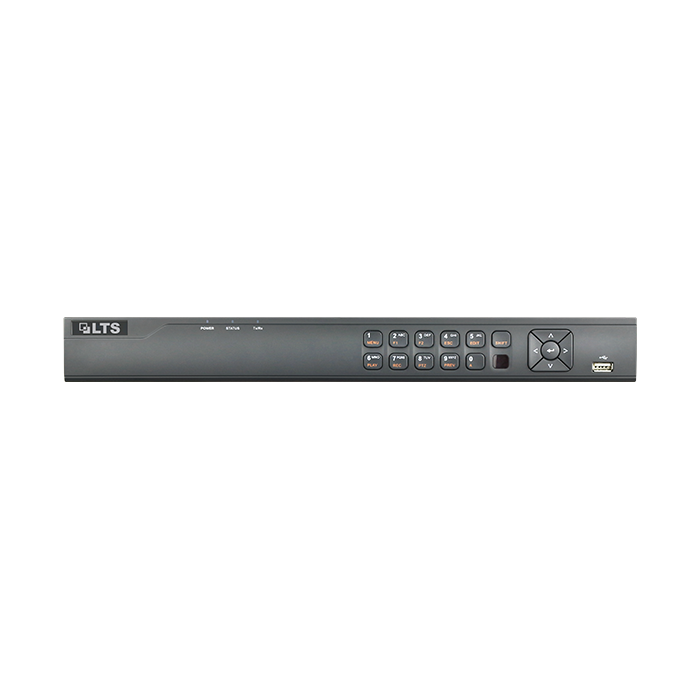

main product photo

Platinum 8-Channel Advanced Level Hybrid NVR, 1U

Be the first to review this product
Call for Price
In stock
SKU
LTN8708K-HT
Out of Stock
Show more Show less
Wish List Compare
  • 8-Channel Hybrid Network Video Recorder
  • Supports 4K / 8 MP HD-TVI 4.0 Cameras
  • Supports 8 MP / 4K (3840 x 2160) IP Cameras
  • H.265+ / H.265 / H.264 Zip+ / H.264
  • Supports 8 Ch. HD-TVI and 8 Ch. IP Cameras
More Information
Specifications
Video / Audio Input
Video/Audio Input H.265+/H.265/H.264 Zip+/H.264
Video Input 8-CH
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition
Supported HDTVI input 8MP ,5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720 p25
Supported AHD input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
IP Video Input 8CH, Up to 8MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u
Audio input 4CH
Video / Audio Output
HDMI/ VGA output

VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60H z, 1024 × 768/60 Hz

HDMI: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz,
Encoding resolution 8MP/5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576,NTSC: 704 × 480
Frame rate Main stream: 8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30 fps (N)
Video bit rate 32 Kbps -10 Mbps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual- stream Support
Stream type Video, Video & Audio
Synchronous playback 8ch
Network
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Drives
SATA 2 SATA
Capacity Up to 8TB capacity for each disk
External Interface
Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial Interface 1; RS-485 serial interface, half-duplex
USB Port Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 8/4
General
Power Supply DC 12V
Consumption ≤ 20W
Working Temperature -10 °C ~ +55 °C(14°F - 131°F)
Working Humidity 10% - 90%
Chassis 1U chassis
Dimension 380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight ≤2Kg (4. 4lb)
SKU LTN8708K-HT
Recorder Technology Hybrid NVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 8-Channel
LTN8708K-HT Spec Sheet (1.90 MB)
