Platinum 8-Channel Professional Level NVR Previous Platinum 8-Channel Professional Level NVR

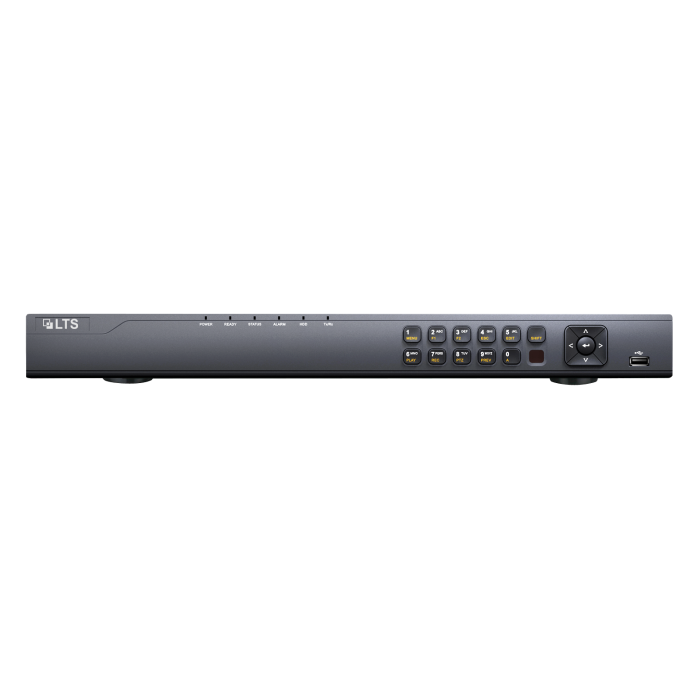

main product photo

Platinum 16-Channel Professional Level NVR

Be the first to review this product
Call for Price
Out of stock
SKU
LTN8716-P8
Out of Stock
Show more Show less
Wish List Compare
  • Video Input: 16 IP channels @ 160 Mbps
  • Video Output: VGA / HDMI up to 1920 x 1080p
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
  • Recording Resolution: Up to 6 MP (3072 x 2048)
  • Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
  • Playback Channels: 8
  • Playback Resolution: Up to 6 MP (3072 x 2048)
  • Audio Channels In/Out: 1 / 1, RCA
  • Built-in PoE Channels: 8
  • Network: 10/100/1000 Mbps
  • Storage: 2 x SATA up to 12 TB; 2 x USB; Supports NAS, IP SAN
  • Supports 4 POSs
  • Backup: USB or NAS
  • 1U chassis
More Information
Specifications
Audio / Video Input
IP video input 16 channels
Two-way audio input 1 channel, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth 160 Mbps
Outgoing bandwidth 80 Mbps
Remote connections 128
Audio / Video Output
Recording resolutions 6 MP / 3 MP / 1080p / UXGA / 720p / VGA  / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI / VGA output 1 ch, resolution: 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz,
1280 × 1024 / 60 Hz, 1280× 720 / 60 Hz, 1024 × 768 / 60 Hz
Audio output 1 ch, RCA (Linear, 1 kΩ)
Frame rates Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Decoding
Live view / playback resolution 6 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Capacity 16 channels
Hard Drives
SATA 2 x SATA interface for 2 x HDDs
Capacity Up to 6 TB for each disk
External interface
Network interface 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial interface 1 x RS-485 half-duplex interface
USB interface 1 x USB 2.0 and 1 x USB 3.0
PoE
PoE Interface 8 independent 100 Mbps PoE port
Max. Power 120 W
Standard  AF and AT
General
Power supply 100 ~ 240V AC, 47 - 63 Hz, 3 A
Power Consumption ≤ 10 W (without hard drive)
Operating Temperature 14° to 131° F (-10° to 55° C)
Operating Humidity 10% ~ 90%
Chassis 19-inch Rack-Mounted 1U Chassis
Dimensions 17.5 x 11.4 x 1.8” (445 × 290 × 45 mm)
Weight ≤ 2.2 lb (1 kg)(without hard drive)
SKU LTN8716-P8
Recorder Technology IP / NVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
LTN8716-P8 User Manual (7.85 MB)
LTN8716-P8 Spec Sheet (510.62 kB)
LTN8716-P8 Quick Start Guide (1.32 MB)
