Platinum Professional Level 16-Channel NVR Previous Platinum Professional Level 16-Channel NVR
main product photo

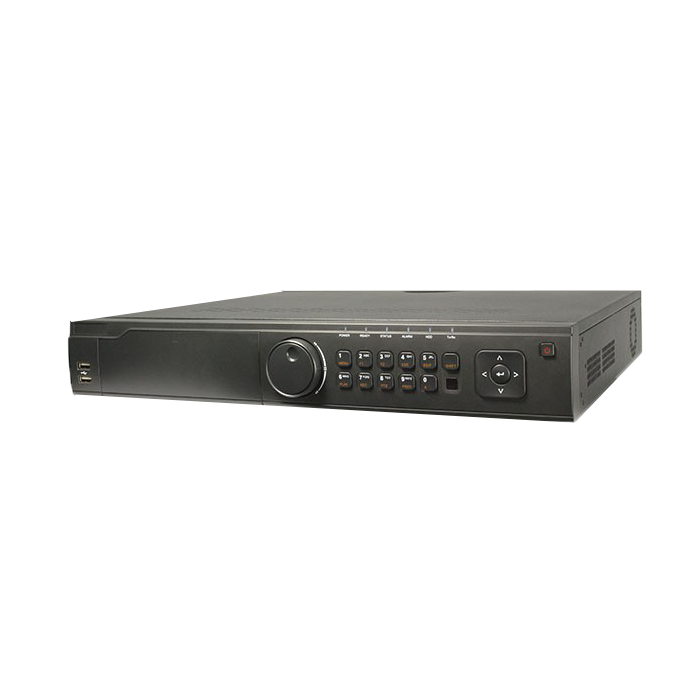

Platinum Enterprise Level 16 Channel NVR 1.5U

Rating:
60 % of 100
5  Reviews Add Your Review
Call for Price
Out of stock
SKU
LTN8816-P16
Out of Stock
Show more Show less
Wish List Compare
  • 16 Channel Network Video Recorder
  • Video Input: 16CH IP@100Mbps
  • Video Output: BNC, VGA, HDMI up to 1920x1080P
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
  • Recording Resolution: Up to 6MP (3072x2048)
  • Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
  • Playback Channel: 16CH
  • Playback Resolution: Up to 6MP (3072x2048)
  • Audio In/Out: 1CH/ 2CH, BNC
  • Alarm In/Out: 16/4
  • Built-in PoE: 16CH
  • Network: 10/100/1000M
  • Storage: 4 SATA up to 24TB
                    3 USB 2.0, eSATA, Support NAS, IP SAN
  • Support POS #: 4
  • Backup: USB, NAS, or eSATA, DVD-RW
More Information
Specifications
Video/Audio input
IP video input 16-ch
Two-way audio input 1-ch, BNC (2.0 Vp-p, 1kΩ)
Incoming bandwidth 100Mbps
Video/Audio output
Recording resolution 6MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
HDMI output 1-ch, resolution:
1920 × 1080P /60Hz,1600 × 1200 /60Hz,
1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA output 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 12 ×80 720 /60Hz, 1024 × 768 /60Hz
Audio output 2-ch, BNC (Linear, 600Ω)
Playback resolution 6MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 16-ch
Hard disk
SATA 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
eSATA 1 eSATA interface
Capacity Up to 6TB capacity for each HDD
External interface
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
16 independent 100 Mbps PoE network interfaces
Serial interface 1 RS-232 interface(for parameters configuration, maintenance,transparent channel)
1 RS-485 interface (reserved);
1 RS-485 keyboard interface (for special keyboard control)
USB interface 3 × USB 2.0
Alarm in 16
Alarm out 4
General
Power supply 100 ~ 240VAC, 6.3A, 50 ~ 60Hz
Consumption ≤ 40 W
Working temperature -10 ºC ~ +55 ºC(14°F ~ 131°F)
Working humidity 10% ~ 90%
Dimensions(W × D × H) 440 × 390 × 70 mm(17.3" x 15.3" x 2.8")
Weight ≤ 4 Kg (8.8 lb) ( without hard disk or DVD-R/W )
Video
SKU LTN8816-P16
Recorder Technology IP / NVR
Recorder Case 1.5U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
Spec Sheet (2.30 MB)
Quick Start Guide (2.52 MB)
User Manual (9.00 MB)
