Platinum Enterprise Level 16 Channel NVR 1.5U Previous Platinum Enterprise Level 16 Channel NVR 1.5U
main product photo

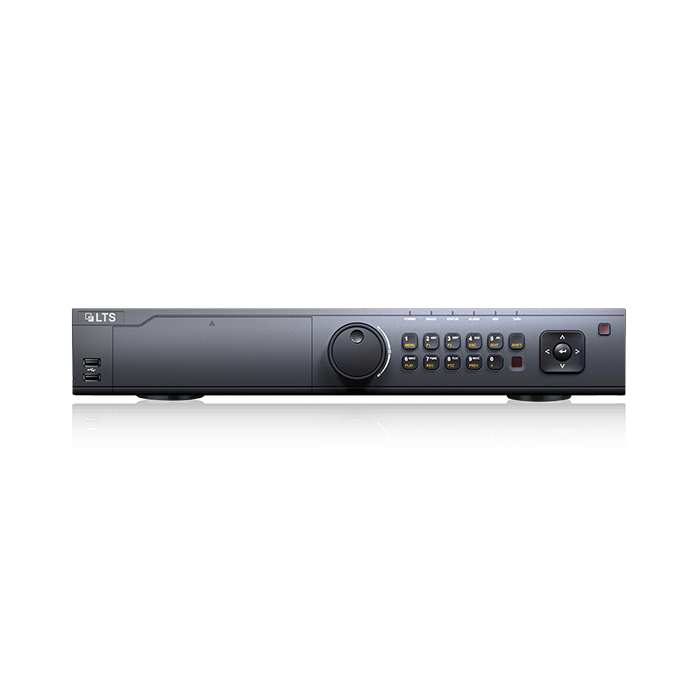

Platinum 32-Channel Enterprise Level NVR

Rating:
60 % of 100
3  Reviews Add Your Review
Call for Price
Out of stock
SKU
LTN8832
Out of Stock
Show more Show less
Wish List Compare
  • 32-Channel Network Video Recorder
  • Video Input: 32 Ch. IP @ 200 Mbps
  • Video Output: BNC, VGA, HDMI up to 1920 x 1080
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
  • Recording Resolution: Up to 6 MP (3072 x 2048)
  • Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
  • Playback Channel: 16 Ch.
  • Playback Resolution: Up to 6 MP (3072 x 2048)
  • Audio In/Out: 1 Ch / 2 Ch, BNC
  • Alarm In/Out: 16 / 4
  • Network: 10/100/1000 Mbps
  • Storage:
    • 4 x SATA up to 24 TB
    • 3 USB 2.0, eSATA
    • Supports NAS, IP SAN
  • Supports 8 POSs
  • Backup: USB, NAS, or eSATA, DVD-RW
More Information
Specifications
Video / Audio input
IP video input 32 channels
Two-way audio input 1 ch, BNC (2.0 Vp-p, 1 kΩ)
Incoming bandwidth 200 Mbps
Video / Audio output
Recording resolution  6MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
HDMI output 1-ch, resolution:
1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60Hz, 1024 × 768 /60Hz
VGA output 1-ch, resolution:
1920 × 1080 / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz,  1280 × 720 / 60Hz, 1024 × 768 / 60Hz
Audio output 2-ch, BNC (Linear, 600Ω)
Playback resolution 6MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 16-ch
Hard drives
SATA 4 x SATA interfaces for 2 x HDDs + 1 x DVD-R/W (default), or 4 x HDDs
eSATA 1 x eSATA interface
Capacity Up to 6 TB capacity for each HDD
External interface
Network interface 1 x RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Serial interface 1 x RS-232 interface(for parameters configuration,maintenance,transparent channel)
1 x RS-485 interface (reserved);
1 x RS-485 keyboard interface (for special keyboard control)
USB interface 3 × USB 2.0
Alarm in 16
Alarm out 4
General
Power supply 100 ~ 240 V AC, 6.3 A, 50 - 60 Hz
Consumption ≤ 40 W
Operating temperature 14° - 131° F (-10º - 55º C)
Operating humidity 10% - 90%
Dimensions
(W × D × H)		 17.3 x 15.3 x 2.8" (440 × 390 × 70 mm)
Weight ≤ 8.82 lb (4 kg) (without hard disk or DVD-R/W )
SKU LTN8832
Recorder Technology IP / NVR
Recorder Case 1.5U Case
Recorder Series Platinum Series
Recorder Channel 32-Channel
LTN8832 Spec Sheet (169.01 kB)
LTN8832 User Manual (9.38 MB)
LTN8832 Quick Start Guide (2.52 MB)
