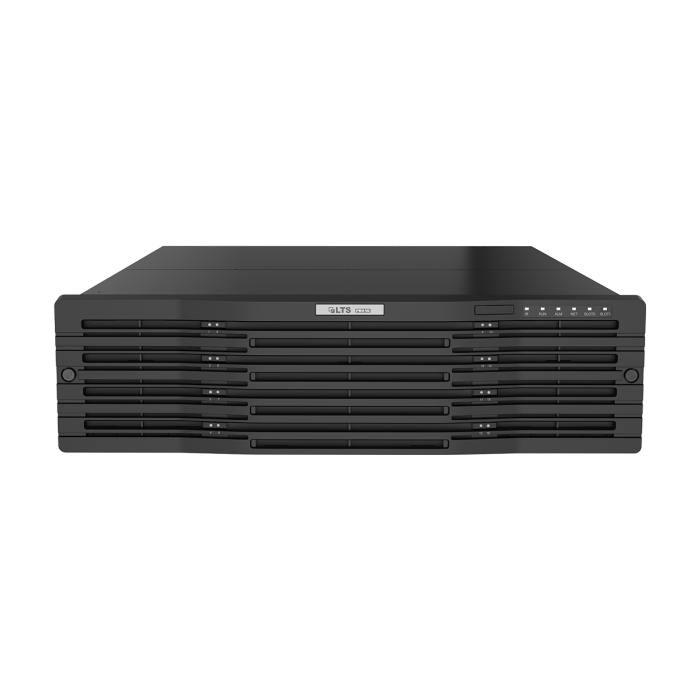

Unified Management System for Pro-VS Devices

The VSVMS-2000 features audio-video compression and decompression, embedded system, storage, network, and smart technologies and is suitable for security surveillance in industries such as finance, public security, military, telecom, transportation, energy, and education.

• Connect up to 1,000 devices, 2,000 channels
• Embedded system design to ensure stable operation
• Support for redundant power, unique dual-OS design
• Hot-swappable HDD supporting RAID 1 and RAID 5
• 512 Mbps incoming bandwidth, 1,000 device connections, up to 2,000 channels of high-definition network videos
• Adaptive H.264 and H.265
• 4K resolution for preview, storage and playback
• Standard ONVIF protocol
• Simultaneous output from 1 x VGA and 2 x HDMI (4K resolution)
• 16 x SATA interfaces with two optional miniSAS interfaces; expandable to 48 disks with 384 TB total storage
• 4 x 1,000 Mbps Ethernet interfaces, 2 x 1,000 Mbps SFP interfaces
• Network fault tolerance, multi-IP configuration
• Unified management of NVRs, IPCs, decoders, alarm hosts, access control host devices; support for device configuration import/export
• Live view, playback, and sequence on video wall
• Two-way audio
• E-map
• Real-time alarms, alarm plans
• HTTPS, certificate creation and upload, 802.1x authentication, ARP protection
• 4 x USB 3.0 ports
• Up to 1,000 users
• B/S, C/S and mobile app clients
