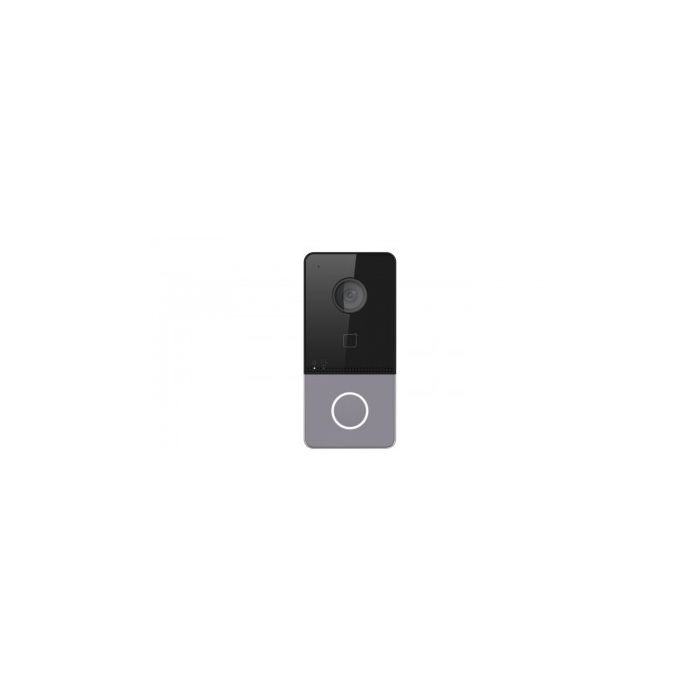

PoE Commercial Intercom Door Station with Card Reader

System Parameters

Operating

system

Embedded Linux

Operation

method

Single-button

Flash

32 M, 16 M

RAM

256 MB

Video Parameters

Camera

2 MP HD camera

Night vision

Low illumination IR supplement mode: 10 ft (3 m)

BLC

Supported

DNR

Supported

WDR

True WDR

Field of view

Horizontal: 129°; Vertical: 75°

Video compression standard

H.264

Stream

Main stream: 1080p @ 30 fps, 720p @ 25 fps

Sub stream: D1 @ 25 fps

Resolution

Main stream: 1920 × 1080p, 720p

Sub stream: 704 × 576

Motion

detection

Supported

Anti-flicker

frequency

50 Hz, 60 Hz

Audio Parameters

Audio intercom

Two-way communication

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio compression standard

G.711 U

Audio compression rate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Network Parameters

Wired network

10/100 Mbps Ethernet

Network

protocols

TCP/IP, RSTP

Access Control Parameters

Reading

frequency

13.56 MHz

Card types

MIFARE

Relay

1

Interfaces

RS-485

1

Wi-Fi

2.4 GHz Wi-Fi

Debugging port

1

Alarm input

4

Grounding

1

Physical button

1

TAMPER switch

1

General

Protections

IP65

Indicator

2

Power supply

IEEE 802.3 af, standard PoE

12V DC

Power
consumption

＜ 10 W

Operating
temperature

-40° to 127.4° F (-40° to 53° C)

Operating
humidity

10% to 95%

Installation

Surface mounting

Dimensions

5.4 x 2.5 x 1 inches
(138 × 65 × 27 mm)
