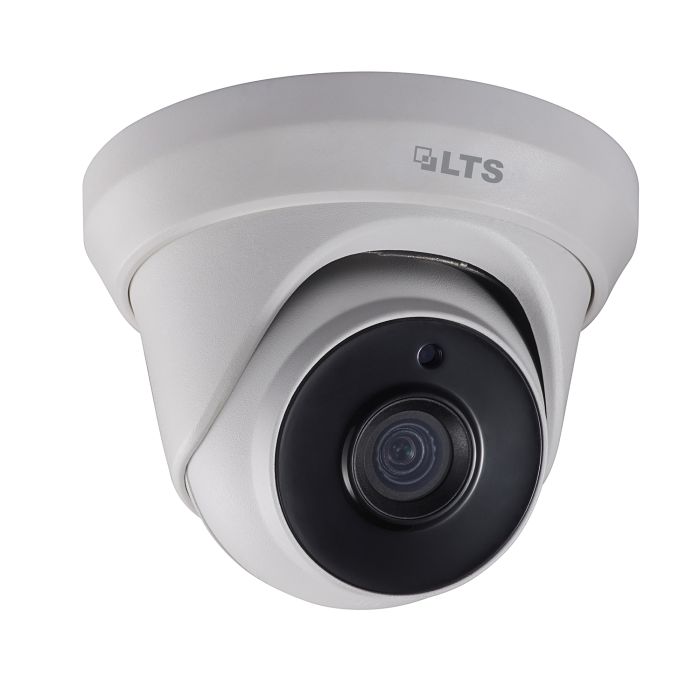

2 MP 3.6 Fixed Lens Ultra-Low Light Turret Camera

Camera

Image Sensor

2.0 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

Min. illumination

Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens

3.6  mm fixed focal lens

Horizontal Field of View

104° (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

WDR (Wide Dynamic Range)

≥ 130 dB

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Support

Day/Night Mode

Auto/Color/BW (Black White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

WDR/BLC/HLC/Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

NR (Noise Reduction)

3D/2D

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR, HLC

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3.4 W

Ingress Protection

IP67

Material

Enclosure: Plastic Main Body: Metal

IR Range

Up to 197ft(60 m)

Communication

Up the coax, TVI output

Dimensions

Ø 110 mm × 93.2 mm (Φ 4.33" × 3.67")

Weight

Approx. 315 g (0.69 lb.)
