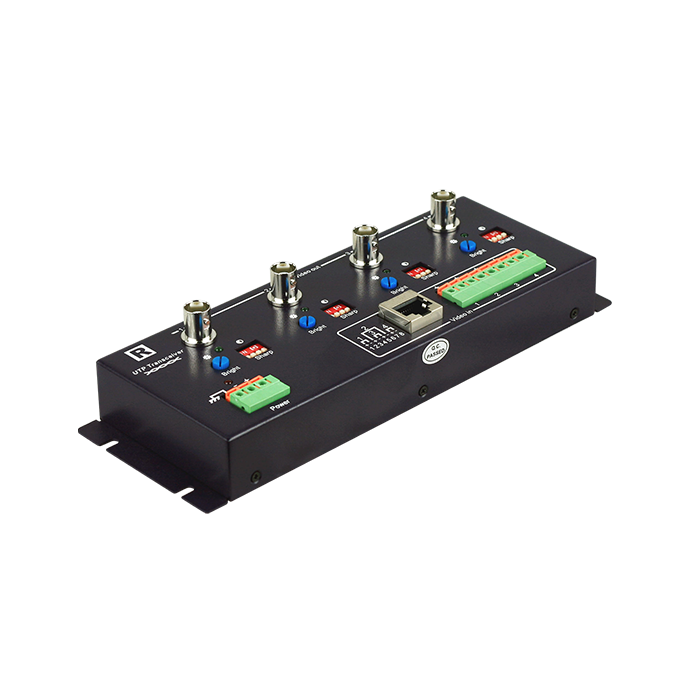

Active Balun Transmitter - 4CH

Call for Price
Out of stock
SKU
LTAB1041R
Out of Stock
  • 4 - Channel Video Transceiver
  • Long Distance Transmission of PAL /NTSC Real-time Video
  • DSA
  • Central transmission for 4CH video
  • Exceptional Interference Rejection
  • Built -in Surge Protection ,Lighting Protection and other Protection Settings
  • Convenient Wiring , Higher Cable Utilization Rate and Lower Composite Wiring Cost
More Information
Specifications
Video
Frequency  DC To 6MHz
Impedance Coax BNC 75 Ω  ;UTP RJ45;100Ω
CMRR 60dB typ
Attenuation 0.3dB typ
Environment
Temperature  Woring Temp:-10℃ ~ +50 ℃
Storage Temp:-30℃ ~ +70 ℃
Wire Type

Humidity 0 ~95%RH
Category Type   UTP CAT5 .24-16AWG
Impedance 9 Ω (100M)
DC Loop Resistance 18Ώ/100M
Differential Capacitance 62pf/M(Max.)
Power
  DC12V<80mA
Surge Supression   6000V, 1.2uS * 50uS
UTP Port
  UTP/Connector: 100Ώ or Rj45 100Ώ
Packing
Quantity in Box  1pc
Box Weight 400(g)
Box Dimension 180*70*25(mm)
Box Quantity Per Carton 36pcs
Carton Net Weight 14400(g)
Carton Gross Weight 14900(g)
Carton Dimension 590*275*435(mm)
SKU LTAB1041R
