LTS Wireless Video Station – The Ultimate Choice for Network Solutions

Properties in the business landscape often need custom network solutions for their integrated devices. There is no doubt to the validity of this statement. This is precisely why LTS is constantly looking to create new network solutions that make it easier for clients with unique long-distance security needs.

Large businesses with expansive outdoor areas such as parking lots and courtyards with lighting poles offer a unique opportunity for remote power sources. This allowed us to leverage these power sources and the existing hardware (the light pole itself) to house our newest long-distance network solutions: The Wireless Video Station.

This one-of-a-kind network light pole solution has no direct competitors on the market. Unique product such as this proves to be a money maker for our clients, providing them money-saving network solutions that are otherwise unavailable.

LTS Wireless Video Station: Functionality Over Distance

The Wireless Video Station is a remote networking and control hub for devices such as IP cameras and Ubiquiti network extenders.

Leveraging Existing Power Sources

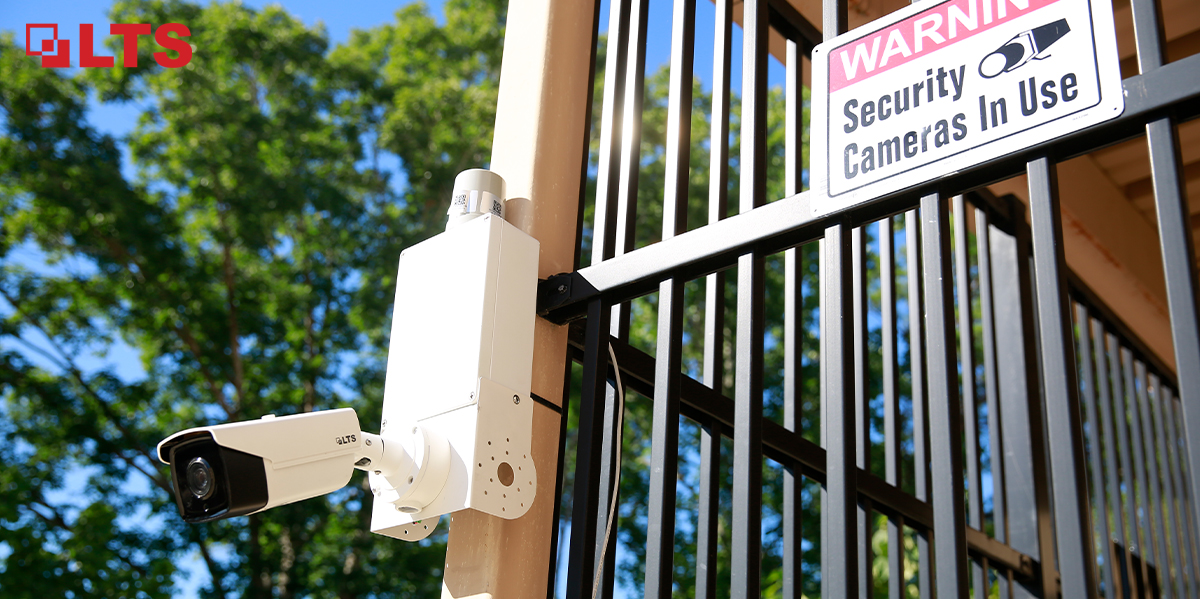

The station box comes with everything needed for convenient placement of an LTS IP camera as well as seamless mounting hardware for a light pole.

Once mounted, the video station takes advantage of the light pole’s existing 110-277V AC power source. This is the first step providing an all-around convenient solution. If you have clients with multiple buildings or parking lots, this is ideal for providing them remote coverage for the distant points on their property.

Without the unique mounting component of the wireless station as well as the convenient power and wireless network sources, installing a camera on a light pole can be difficult and costly. As a result, light pole installation may not be an option for those in remote locations. No network access and no power source pose a huge problem here. Our Wireless Video Station is the total solution.

PoE Integration for IP Security Cameras

One of the big selling points for this product is cost savings for large integration as well as installation projects.

Rather than requiring expensive cabling to be run from the main building of the business to the remote light pole, the video station contains a built-in 4-Port PoE+ Switch. As mentioned above, the station leverages the pole’s existing power source. From there, the PoE switch receives power from the pole and the security camera unit plugs into the switch via Cat5e or Cat6 cable.

From an installation standpoint, your clients should be thrilled to save up to tens of thousands of dollars, which they can allocate to other business necessities. This is also a great opportunity to offer your clients more wireless video stations for comprehensive coverage around their entire lot. With the installation savings, they will have a bigger budget for more units. More on money saving evidence and use cases further in this article.

Built-in Ubiquiti Network Solutions

The last main component for functionality is the Ubiquiti High-Performance airMax Bridge. This is the key component that transmits the IP camera’s data and video feed to a gateway on the main building of the business.

This vastly expands transmission distance for extremely remote projects up to 9 miles.

This is yet another factor that not only dramatically reduces overall costs for projects, but also increases transmission distance. The pre-installed PoE injector facilitates functionality for the wireless bridge. This all-in-one Wireless Video Station tops other network solutions in that it comes pre-packaged with all the components.

Control Node and Wireless Gateway

Two of the most important components for the wireless station to successfully transmit and receive long-distance control signals are the control node and wireless gateway combination.

The control node is included on the station. This is the component that receives wireless signals for remote control of the camera components. This allows the user to control power from a distance among other data and monitoring transmission.

The control node receives and sends its signals via the wireless gateway, installed on the roof of the businesses main building. Installation of these pieces is much easier and more cost effective than pulling cables from the building to remote light poles. The capacity for savings for your clients here is huge.

Use Case with Massive Client Savings

The best way for us to demonstrate the top benefits of out Wireless Video Station is by describing a real-life use case.

Recently, an LTS partnering integrator installed comprehensive network solutions for an auto dealer in Wake Forest, North Carolina. They wanted to put together a state-of-the-art facility with top of the line tech as well as security.

With the integration of the Wireless Video Station, smart LED lighting and a wireless control node on strategically placed light poles across their expansive lot, they were able to get full coverage while saving on overall costs.

By leveraging power from the existing pole source for both lighting and the security cameras, they are saving an estimated 84% more energy. This is an annual energy savings of over $26,000.

They installed a combination of 4K security cameras as well as multiple lens 20MP IP cameras around the lot for total coverage. As we mentioned earlier, the long-distance wireless transmission capabilities of the station facilitate easy installation without the need for trenching and pulling fibers or power cables from the main building.

The dealership ended up saving over $40,000 on installation. Now they have an integrated security and lighting setup that saves them money at every turn. This tops other network solutions on the market as it provides more while cutting costs.

The Wireless Video Station network solutions can bring similar savings to the following types of establishments:

• Business Parks
• Large Warehouses
• Multi-Building Office Complexes
• Outdoor Retail Centers
• Stadiums with Large Parking Lots
• Schools
• Hospitals

Wireless Video Station Network Solutions

To make things easier for you and your clients, we offer 3 variations of the Video Station. These come in pre-packaged kits ready for you to offer clients based on their surveillance needs and unique property requirements.

The Wireless Video Station housing itself is aluminum alloy, perfect for heavy duty application and durability.

Below is a list of our variety of kits that you can use to educate your clients. Take a closer look at what is included as well as the key specs and components.

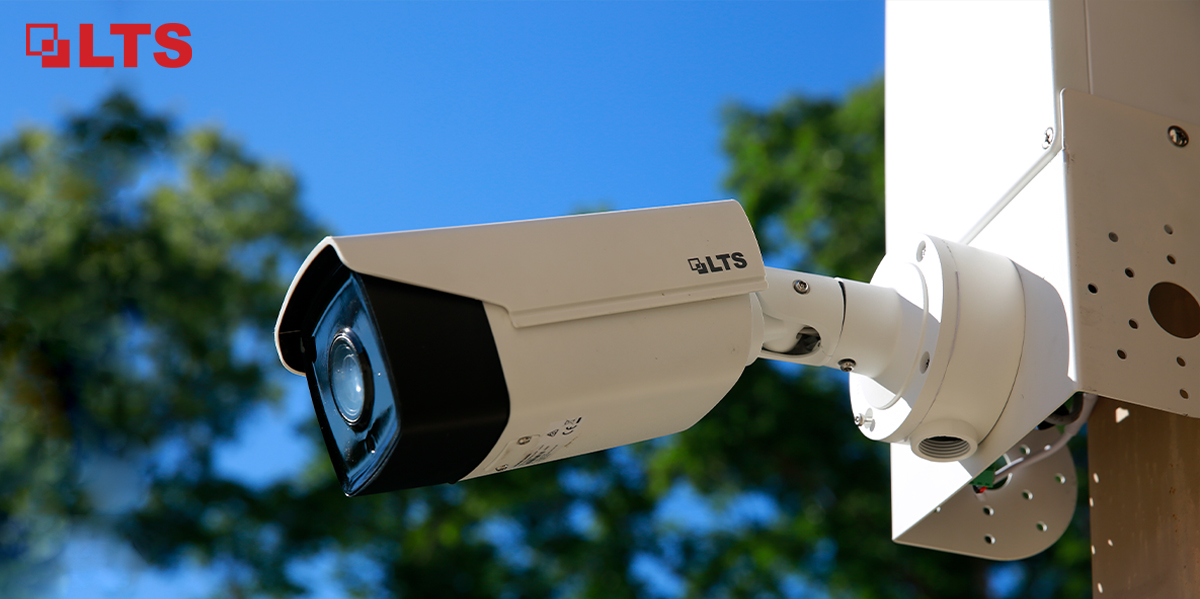

Wireless Video Station + 4K Vari-Focal Bullet IP Camera

This package comes with our top-tier Ultra HD 4K Varifocal Bullet IP Camera. This provides clients with crystal clear, detailed imaging as well as motorized zoom for remote adjustability.

Along with that, the station is scalable with built-in mounting positions along the side of the unit for 2 more cameras as needed.

Here is a breakdown of what is in the kit:

This version of the Wireless Video Station is ideal for any business owner that wants to take advantage of this camera type’s long line of sight. With the motorized vari-focal lens, the proprietor has full control of how close or far the camera focuses.

Wireless Video Station + 2MP Smart Tracking IP PTZ Camera

In this kit, you have the power of our 2MP PTZ camera at your disposal. Clients with wide open areas where a single light pole covers a significant amount of space will benefit from this solution.

The camera captures its HD footage in 1080P clarity and allows the user to pan 360°, tilt to adjust the viewing height and zoom up to 30x for extra long-distance coverage.

This camera model is particularly effective for parking lots where 360° coverage and flexible positioning is valuable.

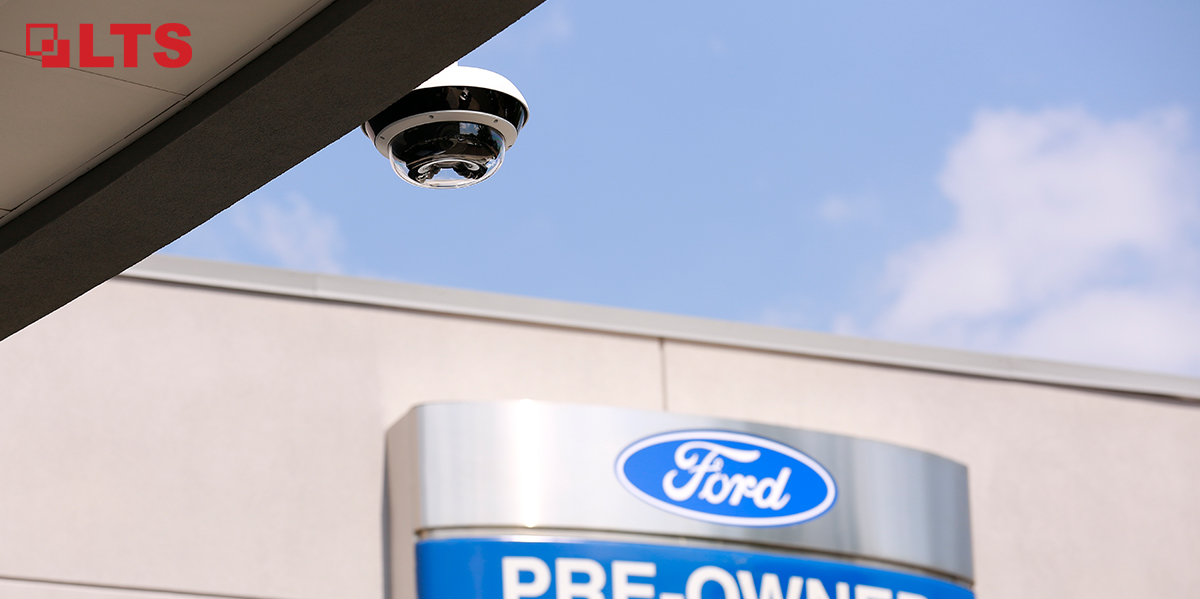

Wireless Video Station + 8MP/20MP Multi-Lens Vari-Focal IP Camera

This is the choice for clients that need 360° coverage all at once. If they need so see in all directions, particularly in large retail spaces, these are ideal security network solutions.

This version of the kit comes with 2 options for the camera component. The camera comes with 4 lenses. The 8MP version contains 4x 2MP lens, while the 20MP version features 4x 5MP lenses.

These full HD camera lenses point in 4 separate directions with wide viewing angles for total coverage.
