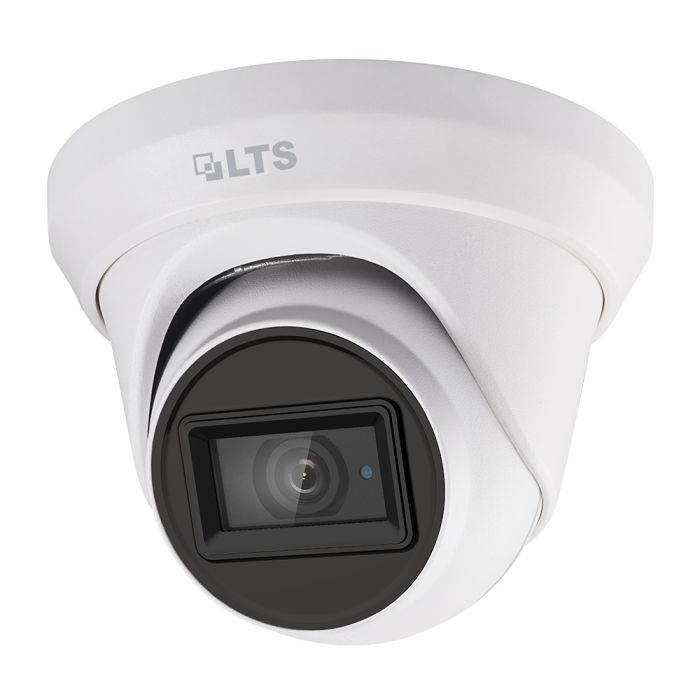

Platinum 8 MP 4-in-1 Turret HD-TVI Camera

Be the first to review this product
Call for Price
Out of stock
SKU
CMHT1782-28F
In Stock
Show more Show less
Wish List Compare
  • 8.29 MP high performance CMOS
  • 3840 × 2160 resolution
  • 2.8 mm fixed lens
  • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR distance
  • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
  • DWDR, DNR
  • IP67 protection
  • OSD Menu via UTC technology with Platinum DVR
More Information
Specifications
Camera
Image Sensor 8.29 MP progressive scan CMOS
Signal System PAL / NTSC
Frame Rates TVI: 8 MP @ 12.5 fps, 8 MP @ 15 fps, 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 2 MP @ 25 fps, 2 MP @ 30 fps
CVI: 8 MP @ 12.5 fps, 8 MP @ 15 fps
AHD: 5 MP @ 20 fps
CVBS: 960H P/N
Resolution 3840 (H) × 2160 (V)
Min. Illumination Color: 0.01 Lux @ f 1.2, AGC on, 0 Lux with IR
Shutter Time PAL: 1/12.5 to 1/50,000 sec.
NTSC: 1/15 to 1/50,000 sec.
Lens 2.8 mm
Horizontal Field of View 102.2°(2.8 mm)
Lens Mount M16
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0°to 360°, Tilt:0°to 75°, Rotate: 0°to 360°
Synchronization Internal synchronization
Digital Wide Dynamic Range (DWDR) 105 dB
Menu
AGC Yes
Day / Night Mode Auto / Color / Black and White
White Balance Auto / Manual
Backlight Compensation (BLC) Yes
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 x HD analog output
Signal Options TVI / AHD / CVI / CVBS
General
Operating Conditions -40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Max. 5.3 W
Protection Levels IP67
Materials Enclosure: Plastic
Main body: Metal
IR Range Up to 197 ft (60 m)
Communication Up the coax, TVI output
Dimensions Ø 4.32 × 3.6"  (Ø 109.82 × 91.03 mm)
Weight Approx. 0.71 lb  (320 g)
SKU CMHT1782-28F
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 8MP
CMHT1782-28F Spec sheet (868.05 kB)
