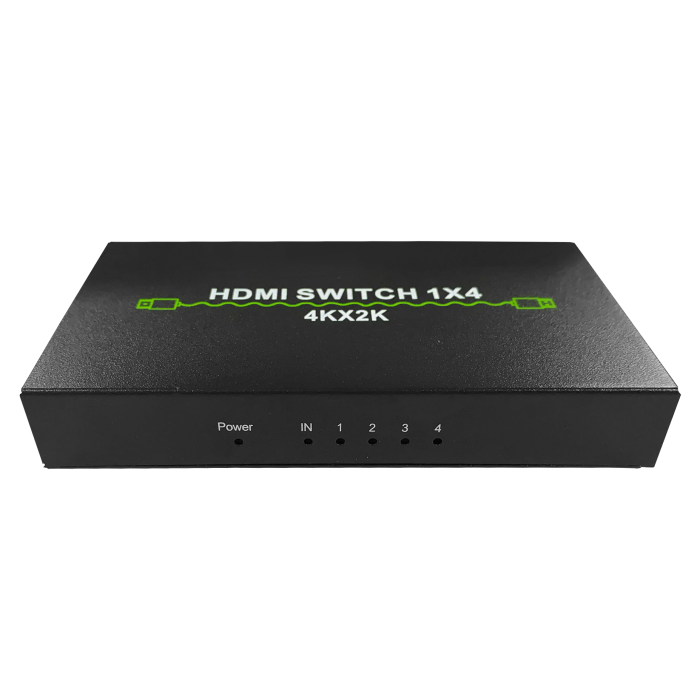

HDMI Splitter - 1-In, 4-Out

In stock

SKU

LTAH014LN

In Stock

1 x 4 HDMI Splitter, Single HDMI Source, Resolution up to 3840 x 2160 / 30 Hz

Support for:

HDMI 1.4b version
3D video format
High resolution up to 3840 x 2160 / 30 Hz
Highest rate of 3.4 GB and TMDS clock can be up to 340 MHz
8 / 10 / 12-bit deep color
AWG 26 HDMI Standard Cable: Input up to 33 ft (10 m), output up to 49 ft (15 m); when the resolution is 4K, input up to 26 ft (8 m), output up to 26 ft (8 m)
Single HDMI source, access to multiple HDMI sinks; sources can be DVD player, A/V receiver, set-top box, etc.
5V DC / 1 A power adapter

Show more Show less

Support for:

HDMI 1.4b version
3D video format
High resolution up to 3840 x 2160 / 30 Hz
Highest rate of 3.4 GB and TMDS clock can be up to 340 MHz
8 / 10 / 12-bit deep color
AWG 26 HDMI Standard Cable: Input up to 33 ft (10 m), output up to 49 ft (15 m); when the resolution is 4K, input up to 26 ft (8 m), output up to 26 ft (8 m)
Single HDMI source, access to multiple HDMI sinks; sources can be DVD player, A/V receiver, set-top box, etc.
5V DC / 1 A power adapter

More Information

Specifications

Specifications
HDMI Version	HDMI 1.4b
HDMI Resolution	Up to 3840 x 2160 / 30 Hz
Supported Video Formats	8 / 10 / 12 bit deep color
Supported Audio Formats	DTS-HD / Dolby-true HD / DTS / Dolby - AC3 / DSD
Max. Bandwidth	340 MHz
Max. Baud Rate	3.4 Gbps
Input Cable Distance	1080p resolution ≤ 33 ft, 4K resolution ≤ 26 ft AWG 26 HDMI standard cable
Output Cable Distance	1080p resolution ≤ 49 ft, 4K resolution ≤ 26 ft AWG 26 HDMI standard cable
Max. Working Current	500 mA
Power Adapter Formats	Input AC (50 Hz, 60 Hz) 100 ~ 240V AC; output: 5V DC / 1 A
Operating Temperature	5° to 131° F (-15° to 55° C)
Dimensions (L x W x H)	7.0 x 2.6 x 0.79” (178 x 66 x 20 mm)
Weight	0.24 lb (110 g)

SKU

LTAH014LN
