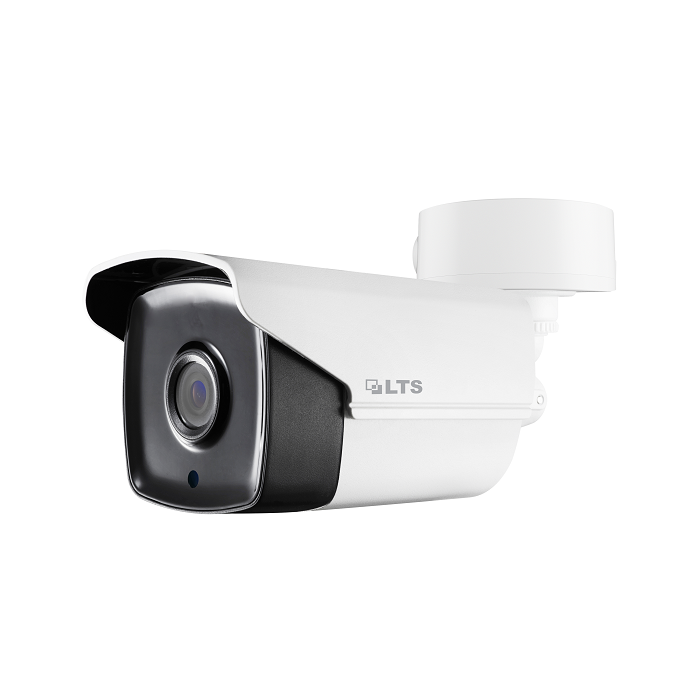

Platinum Bullet HD-TVI Camera 5MP - 3.6mm

Camera

Image Sensor

5 MP CMOS

Signal System

PAL/NTSC

Resolution

2560 (H) × 1944 (V)

Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Min. illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm, 3.6 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR/BLC/HLC/Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 4.3 W

Protection Level

IP67

Material

Front Cover: Metal

Main Body: Plastic

IR Range

Up to 131ft(40 m)

Communication

Up the coax, TVI output

Dimensions

78.9 mm × 75.4 mm × 184.9 mm (3.10" × 2.97" × 7.28")

Weight

Approx. 304 g (0.67 lb.)
