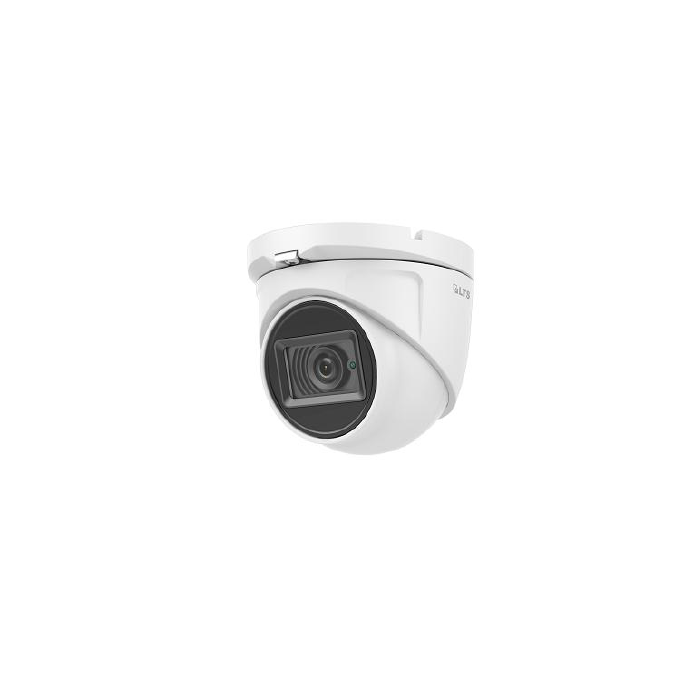

Platinum Turret HD-TVI Camera 5MP - 3.6mm

Call for Price
Out of stock
SKU
CMHT1352N-F
Out of Stock
3yr  ovnif
  • High Definition Turret 5MP HD-TVI Camera
  • 3.6mm Fixed Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 66ft
  • UTC Control to OSD Menu
  • 2D DNR, DWDR
  • DC 12V
  • IP67
  • 4-in-1 Video Output
More Information
Specifications

Camera

Image Sensor

5 MP CMOS

Signal System

PAL/NTSC

Resolution

2560 (H) × 1944 (V)



Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Min. illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm, 3.6 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR/BLC/HLC/Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 4.3 W

Protection Level

IP67

Material

Metal

IR Range

Up to 98ft(30 m)

Communication

Up the coax, TVI output

Dimensions

Φ 82.6 mm × 90 mm × 79.37 mm (Φ 3.25" × 3.54" × 3.12")

Weight

Approx. 289 g (0.64 lb.)

SKU CMHT1352N-F
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 5MP
Spec Sheet (883.29 kB)
User Manual (1.21 MB)
