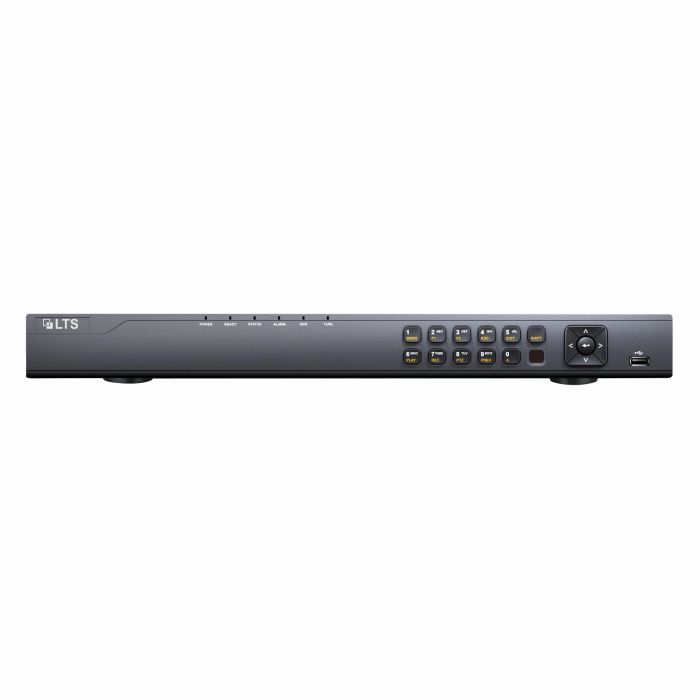

Platinum Professional Level 8 Channel NVR - 4K

Video/Audio Input

IP video Input

8-ch

Two-way audio input

1- ch, RCA (2.0 Vp- p, 1kΩ)

Network

Incoming bandwidth

80Mbps

Outgoing bandwidth

80Mbps

Video/Audio Output

Recording resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI output

4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz,

1280 × 720/60Hz, 1024 × 768/60Hz

VGA output

1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio output

1- ch, RCA (Linear, 1kΩ)

Decoding

Decoding format

H.265/H.265+/H.264/H.264 Zip+/MPEG4

Recording resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

8 -ch

Capability

1-ch @ 8 MP / 4-ch @ 1080p

Hard Disk

SATA

2 SATA interfaces for 2 HDDs

Capacity

Up to 6TB for each disk

External Interface

Network Interface

1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface

Network protocols

TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI,UPnP™ , HTTPS

USB Interface

2 × USB 2.0

PoE

Interface

8, RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Max. Power

≤80W

Supported standard

IEEE 802.3 af/at

GENERAL

Power Supply

100~240V AC

Power

≤ 180W

Cons umption

≤15W

Working Temperature

14°F - 131°F(-10 °C ~ +55 °C)

Working Humidity

10% - 90%

Casing

380mm chassis

Dimens ions (WxDxH)

380 ×315× 52mm (15.0×12.4 × 2.0 inch)

Weight

≤ 3 kg (6.6 lb)
