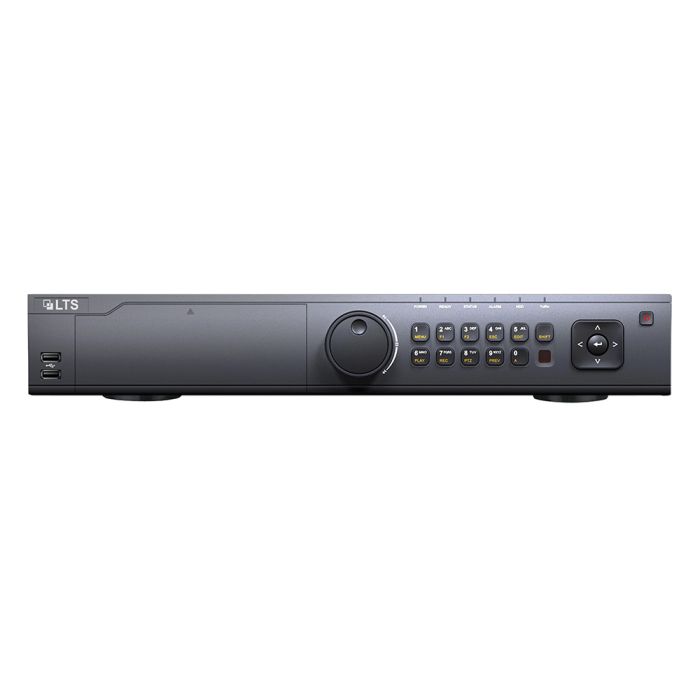

TURBO HD DVR

Model

LTD8432K-EA

Recording

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

When 1080p Lite mode not enabled:

4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled:

4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Frame rate

Main stream:

When 1080p Lite mode not enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/ CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps

For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)

/30fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/ VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)

/30fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video bit rate

32 Kbps to 6 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

16-ch (up to 40-ch)

16-ch (up to 48-ch)

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog video input

24-ch

32-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

*: The 3 MP signal input is only available for channel 1/2/3/4.

AHD input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI1/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI2 output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×

1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio input

4-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)

Synchronous playback

16-ch

Network

Remote connections

128

Network protocols

TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,

HTTPS, ONVIF, SNMP

Network interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface

SATA

4 SATA interfaces

eSATA

Support

Capacity

Up to 10 TB capacity for each disk

Serial interface

RS-232, RS-485 (full-duplex), Keyboard

Alarm in/out

16/4

USB interface

Front panel: 2 × USB 2.0

Rear panel: 1 × USB 3.0

General

Power supply

100 to 240 VAC, 50 to 60 Hz, 1.1 A

Consumption

(without HDD)

≤ 45 W

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Dimensions (W × D × H)

440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)

Weights (without HDD)

≤ 7 kg (15.4 lb)
