Platinum Professional Level 16 Channel HD-TVI DVR Previous Platinum Professional Level 16 Channel HD-TVI DVR

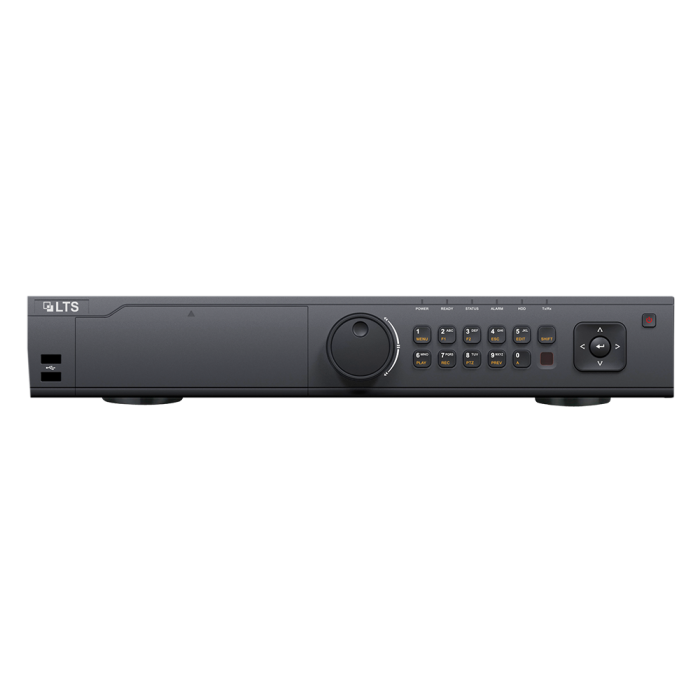

Platinum 32-Channel Enterprise Level NVR

Call for Price
In stock
SKU
LTN8932H
In Stock

Professional and Reliable

  • New, logical, visualized GUI
  • Dual-OS design to ensure high reliability of system
  • ANR technology to enhance the storage reliability when the network is disconnected

Video Input and Transmission

  • Streaming over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) provides more secure transmission (max. 128 Mbps TLS stream outgoing bandwidth)
  • Up to 32 IP cameras can be connected (up to 12 MP)
  • Compatible with third-party network cameras

Compression and Recording

  • H.265+ compression effectively reduces the storage use by up to 75%
  • Full channel recording at up to 12 MP resolution

HD Video Output

  • HDMI and VGA independent outputs provided
  • HDMI Video output at up to 4K (3840 x 2160) resolutions

Storage and Playback

  • Up to 4 x SATA interfaces for HDD connection
  • 16 channels of synchronous playback at up to 1080p resolutions
  • Important files management
  • HDD health monitoring

POS & Smart Functions

  • Supports multiple Video Content Analytics (VCA) events
  • Smart search for selected areas in video feed; smart playback to improve efficiency
  • Supports VCA search for fire, vehicles, temperature differences; detection-triggered video files
  • POS information overlay on live view and playback
  • POS-triggered recording and alarms

Network & Ethernet Access

  • LTS-Connect for easy network management
  • Gigabit Ethernet network interface
More Information
Specifications

Model

LTN8932H



Video / Audio Input



IP video input

32 channels

Up to 12 MP resolution

Two-way audio

1 ch, RCA (2.0 Vp-p, 1 k Ω)



Network

Incoming bandwidth

256 Mbps

Outgoing bandwidth

256 Mbps

Remote connections

128













Video / Audio Output

Recording resolution

3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA;
4CIF, DCIF, 2CIF, CIF, QCIF

CVBS output

1 ch, BNC (1.0 Vp-p, 75 Ω);
Resolutions: PAL: 704 × 576, NTSC: 704 × 480


HDMI 1 output resolution

4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz,
2K (2560×1440) / 60 Hz, 1920 × 1080p / 60 Hz,
1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz,
1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

VGA output resolution

2K (2560 × 1440) / 60 Hz, 1920 × 1080p / 60 Hz,
1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz,HDMI1 / VGA Simultaneous Output

HDMI 2 output resolution

1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz,
1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Audio output

1 ch, RCA (Linear, 1 KΩ)







Decoding

Decoding format

H.264 / H.264+ / H.265 / H.265+ / MPEG4

Live view / Playback resolution

3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA;
4CIF, DCIF, 2CIF, CIF, QCIF

Synchronous playback

16 ch

Capability

2 ch @ 12 MP (20 fps) / 4 ch @ 8 MP (25 fps) / 8 ch @ 4 MP (30 fps) / 16 ch @ 1080p (30 fps)

Network management

Network protocols

TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS



Hard disk

SATA

4 x SATA interfaces for 4 x HDDs

Capacity

Up to 8 TB capacity for each HDD

eSATA

1 x eSATA interface





External interface

Network interface

2 x  RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

 Serial interface

1 x RS-485 (half-duplex), 1 x RS-232

 USB interface

Front panel: 2 x USB 2.0
Rear panel: 1 x USB 3.0

 Alarm channels (in/out)

16 / 4 (16 / 8 option)













General

 Power supply

100 to 240 VAC

Power

≤ 80 W

Consumption (without hard drive)



≤ 20 W

Operating temperature

14° to 131° F  (-10° to 55° C)

Operating humidity

10 to 90 %

Dimensions
(W × D × H)

17.5 × 15.7 × 2.8" (445 × 400 ×71 mm)

Weight

(without hard drive)



≤ 11 lb  (5 kg)

SKU LTN8932H
Recorder Technology IP / NVR
Recorder Case 1.5U Case
Recorder Series Platinum Series
Recorder Channel 32-Channel
