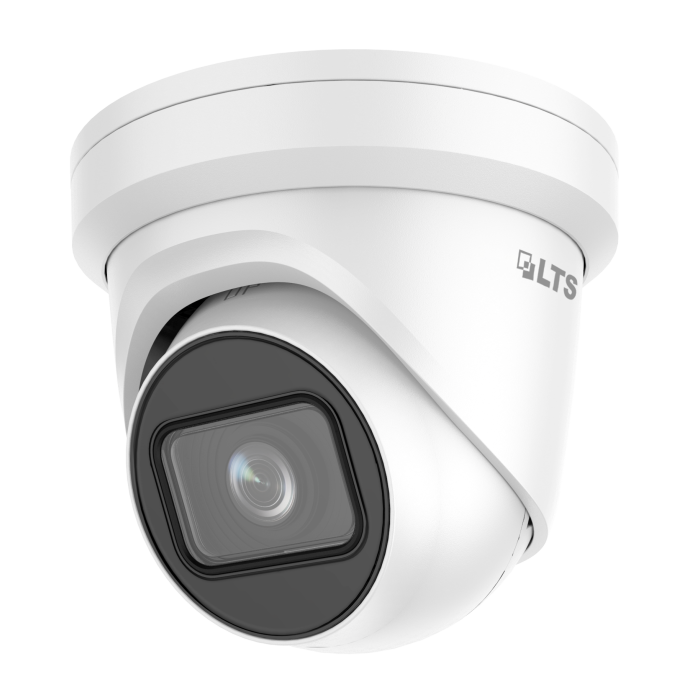

6 MP IR Varifocal Turret Network Camera

Call for Price
Out of stock
SKU
LTCMIP3263NW-SZ
In Stock
  • 1/2.9" Progressive Scan CMOS
  • 3072 × 2048@20fps
  • 2.8 to 12 mm varifocal lens
  • Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • Three streams
  • 2 Behavior analyses
  • 120dB WDR
  • BLC/3D DNR/ROI/HLC
  • IP67, IK10
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3-Axis adjustment
  • IR range: Up to 98ft(30 m)
  • Anti-IR reflection
More Information
Specifications



Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

120dB

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Lens Type

Varifocal lens, motorized lens , 2.8 to 12 mm

Auto-Iris

No

Aperture

F1.6

FOV

Horizontal FOV: 88° to 27°, vertical FOV: 56° to 18°, diagonal FOV: 110° to 33°

Lens Mount

Φ14

Illuminator



IR Range

Up to 98ft(30 m)

Wavelength

850nm

Video



Max. Resolution

3072 × 2048



Main Stream

50Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)



Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)



Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)



Video Compression

Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.264 and H.265 encoding

* Note: When the main stream resolution is 2944 × 1656 and above, max frame rate is 20 fps for all streams.

Audio



Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz



Smart Feature-set



Smart Event

Line crossing detection, intrusion detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Face Detection

Yes

Linkage Method

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Region of Interest

1 fixed region for main stream and sub-stream


Image Enhancement

BLC/3D DNR/HLC

Image Settings

Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Network

Network Storage

microSD/SDHC/SDXC card (128 G), local storage and NAS (NFS, SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,  UPnP™,  SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, TLS, SSL

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK



Security

Password protection, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, complicated password, anti-crack password protection

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users, 3 levels: Administrator, Operator and User



Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface



Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio

1 input (line in), 1 output (line out), four-core terminal block, mono sound

Alarm

1 input, 1 output

Video Output

No

Interface Style

Pigtail style interface

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

General



Web Client Language

32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, three streams, heartbeat, mirror, regions of privacy mask, flash log, password reset via e-mail

Reset

Reset via reset button on camera body, web browser and client software



Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)



Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.92 A, max. 11 W

PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12. 5W

Material

Metal



Dimensions

Camera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0")

With Package: 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")



Weight

Camera: Approx. 1.20 kg (2.65 lb.)

With Package: Approx. 1.42 kg (3.13 lb.)

Approval



EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4:

2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)



Note: Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.



SKU LTCMIP3263NW-SZ
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 6.0MP
