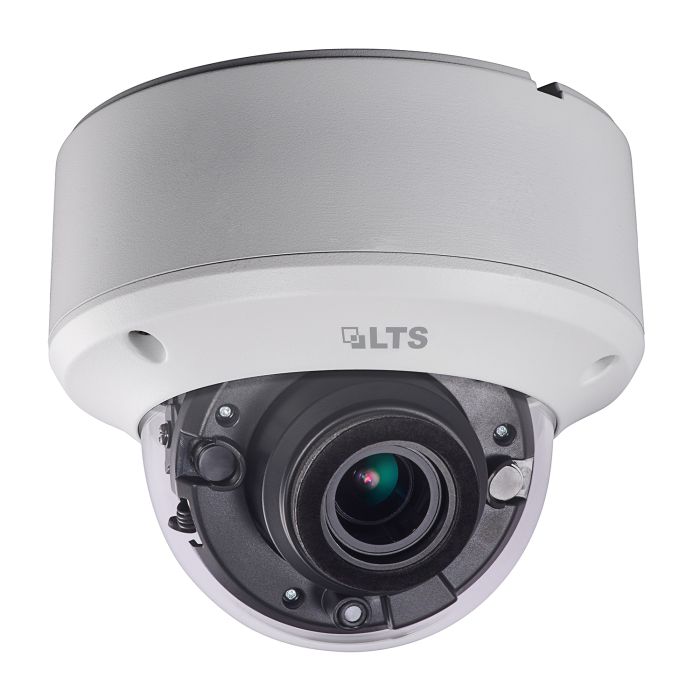

Platinum 2 MP Varifocal Dome HD-TVI Camera

Camera

Image Sensor

2 MP CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rates

PAL: 1080p @ 25 fps

NTSC: 1080p @ 30 fps

Min. Illumination

Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR

Shutter Speed

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Slow Shutter

MAX. 16 times

Lens

2.7 mm to 13.5 mm motorized, auto focus

Horizontal Field of View

103° to 32.1°

Lens Mount

Φ14

Day & Night

ICR

Wide Dynamic Range (WDR)

≥ 130 dB

Range of Motion

Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Menu

Image Mode

STD / HIGH-SAT

AGC

Yes

Day / Night Mode

Auto / Color / Black and White

White Balance

Auto / Manual

Auto Exposure (AE) Mode

WDR / BLC / HLC / Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction (NR)

3D DNR / 2D DNR

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Signal Options

Switchable TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%, 24 VAC ± 25%

*LTS recommends using one power adapter per camera.

Power Consumption

Max. 7.5W

Protection Levels

IK10, IP67

Materials

Metal

IR Range

Up to 197 ft (60 m)

Dimensions

Φ 7.1 × 4.9"  (Φ 145.2 × 124.1 mm)

Weight

Approx. 1.41 lb  (640 g)
