Platinum Starlight HD-TVI Turret Camera, 2.1MP Previous Platinum Starlight HD-TVI Turret Camera, 2.1MP
main product photo

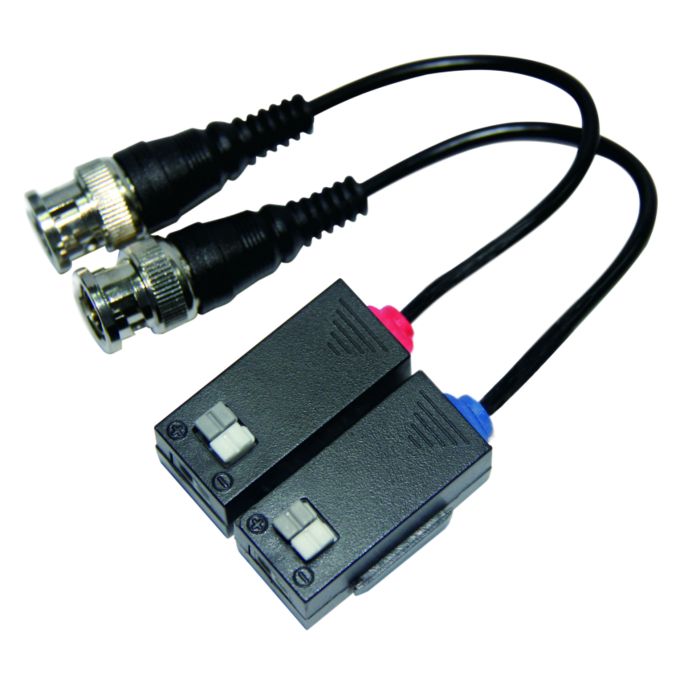

Single Channel Passive Video Balun

Be the first to review this product
Call for Price
In stock
SKU
LTAB4020T
In Stock
Show more Show less
Wish List Compare
  • Supports up to 5MP HD-TVI, 2 Year Warranty
  • Real-time transmission over UTP cat5e/6
  • Compatible with all HD-TVI/CVI/AHD/Analog cameras
  • Copper pin BNC connector, connectable style
  • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
  • Application Diagram
  • Push-pin terminal with pigtail
  • Save Installation Time and Quickly Connect to Cameras from DVRs Easily
More Information
Specifications
Accessory Type Single Channel Passive Video Balun
SKU/Product Number LTAB4020T
Description

Supports up to 5MP HD-TVI, 2 Year Warranty
Specifications
Video Parameters
Video Format HD-TVI/CVI/AHD/CVBS
Operating Frequency DC to 42MHz
Max Distance
HD-TVI 720P 250m (820ft) HD-TVI 1080P 250m (820ft) HD-TVI 3MP 200m (656ft) HD-TVI 4MP 200m (656ft) HD-TVI 5MP 200m (656ft)
HD-CVI 720P 440m (1443ft) HD-CVI 1080P 230m (754ft) HD-CVI 4MP 230m (754ft) CVBS 400m (1312ft)
HD-AHD 720P 320m (1049ft) HD-AHD 960P 320m (1049ft) HD-AHD 1080P 250m (820ft) HD-AHD 4MP 200m (656ft) HD-AHD 5MP 200m (656ft)
Common Mode/ Differential Mode Rejection 15KHz to 42MHz 60 dB type
Impedance Coax: Male BNC 75 unbalanced; UTP: push-pin terminal block 100 balanced
Attenuation 1.5 dB typ Max
Wire Type
Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG ( 0.5-1.31mm)
Category Type

2 or better
Impedance 100 ± 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Connector
Video input/output Male BNC connector
Video input/output Tool-less push-pin terminal block
Mechanical
Housing ABS engineering plastic
Body Color Black
Dimensions 180x16x17.6mm(7.09x0.63x0.69”) (BNC connector & cable excluded)
Net Weight 40g (0.088lb)
Power
Power No external power required
ENVIRONMENTAL
Ingress protection level IP 54
Power supply AC 16V to 2 4 V
Power frequency 50 Hz to 60 Hz
SKU LTAB4020T
