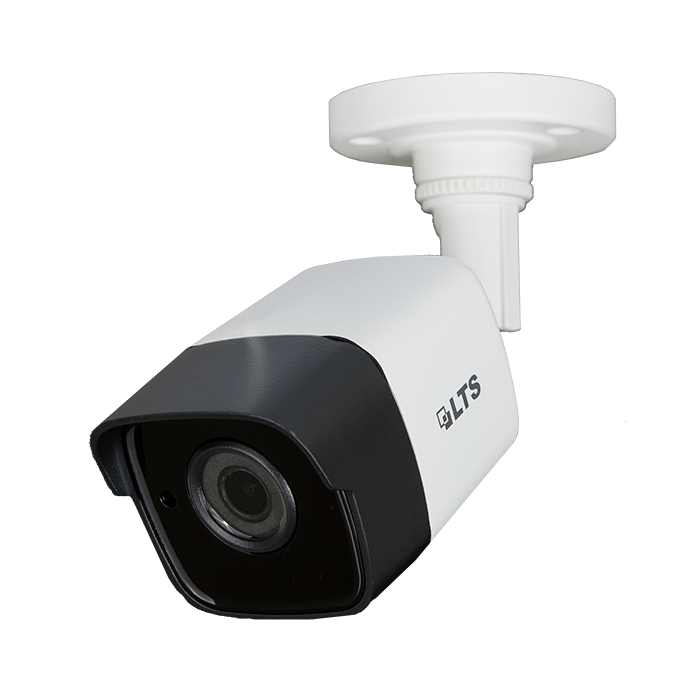

Platinum Bullet HD-TVI Camera 3MP - 2.8mm

Be the first to review this product

Call for Price

Out of stock

SKU

CMHR64T2-28

Out of Stock

3MP High Definition, 2.8mm Fixed Lens, 2 Matrix IR 2.0 up to 65ft (20m), DC 12V, OSD Menu via UTC technology compatible with HD-TVI DVR, IP66, Must be Used with HD-TVI 3.0 DVRs

3MP High Definition
2.8mm Fixed Lens
2 Matrix IR 2.0 up to 65ft (20m)
DC 12V
OSD Menu via UTC technology compatible with HD-TVI DVR
IP66 weatherproof

*Must be Used with HD-TVI 3.0 DVRs

Show more Show less

Details

3MP High Definition
2.8mm Fixed Lens
2 Matrix IR 2.0 up to 65ft (20m)
DC 12V
OSD Menu via UTC technology compatible with HD-TVI DVR
IP66 weatherproof

*Must be Used with HD-TVI 3.0 DVRs

Specs

More Information

Specifications

CAMERA
Image Sensor	1/3" CMOS
Signal System	NTSC/PAL
Effective Pixels	2052(H)*1536(V)
Min. Illumination	0.01Lux, 0 Lux with IR
Lens	2.8mm
Shutter Speed	1/30 (1/25) to 1/50,000 s
Day & Night	ICR
Synchronization	Internal
Video Frame Rate	1920x1536@18fps
HD Video Output	1 HD-TVI Output
S/N Ratio	More than 62dB
MENU
AGC	Support
D/N Mode	Color/ BW/ SMART
White Balance	ATW/ MWB
BLC	Support
Function	DNR, Mirror, SMART IR
GENERAL
Working Temperature /Humidity	-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing)
Power Supply	DC 12V
Power Consumption	Max. 5W
Weather Proof Ratings	IP66
IR Range	Up to 65ft (20m)
Dimensions	2.3" x 2.2" x 6.1" (58.5 x 55.5 x 153.6mm)
Weight	0.8 lbs (370g)
