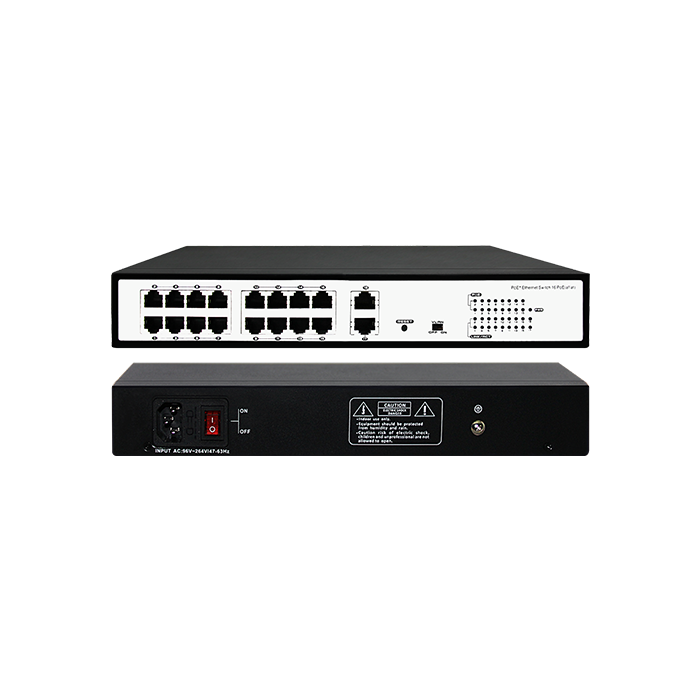

16-Port Switch with 1 PoE & 2 Gigabit Uplink Ports

Be the first to review this product

Call for Price

Out of stock

SKU

LTPOE-SW1602E

Out of Stock

16-Port Switch

Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 af/at standards
Support for IEEE 802.3x full-duplex flow control; support for auto MDI / MDIX
16 ports support 48 - 56V DC power to PoE powered devices
Provides 15.4 W or 30 W power over Ethernet to devices
2 x Gigabit uplink ports: 10/100/1000 Mbps RJ-45
250-Watt PoE budget
PoE data & power transmission distance up to 325 ft (100 m)
Excellent anti-thunder, anti-static and anti-interference ability
Surge protection up to 6 KV
Port-based VLAN for enhanced security
Transmission distance up to 820 ft (250 m) with VLAN enabled
Restart function helps master complete IC reset
Easy and convenient to use; plug & play, no configuration needed
Built-in 250 W power supply
Galvanized housing for stable and durable operation

Show more Show less

Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 af/at standards
Support for IEEE 802.3x full-duplex flow control; support for auto MDI / MDIX
16 ports support 48 - 56V DC power to PoE powered devices
Provides 15.4 W or 30 W power over Ethernet to devices
2 x Gigabit uplink ports: 10/100/1000 Mbps RJ-45
250-Watt PoE budget
PoE data & power transmission distance up to 325 ft (100 m)
Excellent anti-thunder, anti-static and anti-interference ability
Surge protection up to 6 KV
Port-based VLAN for enhanced security
Transmission distance up to 820 ft (250 m) with VLAN enabled
Restart function helps master complete IC reset
Easy and convenient to use; plug & play, no configuration needed
Built-in 250 W power supply
Galvanized housing for stable and durable operation

More Information

Specifications

Power Supply
Power Supply Mode	Built-in Power Supply
Voltage Range	96 ~ 264V AC
Power Consumption	The device < 5 W / POE power supply < 250 W

Network Port Parameters
Network Port	Ethernet Downlink Port: 10/100 Mbps 2 x Gigabit Uplink Port: 10/100/1000 Mbps, RJ-45
Transmission Distances	Uplink & Downlink ports: 325 ft (100 m)
Transmission Medium	Downlink Port: Cat5e / 6 standard cable Uplink Port: Cat5e / 6 standard cable
POE Standards	IEEE 802.3 af / at
PoE Power Supply Mode	End-span method
PoE Power Supply Wattage	Each port ≤ 30 W Whole device＜ 250 W

Network Switch Specifications
Network Standards	IEEE 802.3 10 BASE-T IEEE802.3u 100 BASE-TX / FX IEEE802.3az
Swap Mode	Store-and-forward
Data-Caching Mechanism	4 M
MAC Address List	16K
Backplane Bandwidth	7.2 Gbps

Indicator / Buttons
Power Indicator	Red LED on: power on
Fast Ethernet Uplink Ports	Green LED: On: Link up Off: Link down Blinking: Data transfer
PoE Indicators	16 PoE indicators (Yellow)
PoE Network Port Indicators	16 port indicators blink while data transfer
Reset Button	Press the reset button to turn on indicator (green) and the device restarts.

Protection Levels
Surge Protection	6KV(common mode),10/700us IEC61000-4-5 2KV(differential mode),10/700us IEC610000-4-5
Electrostatic Protection	Contact Discharge: ±4KV Air Discharge: ±6KV Standard: IEC61000-4-2

Reliability
Mean Time Between Failures (MTBF)	＞ 50,000 hours

Physical Specs
Dimensions (L x W x H)	11.8 x 8.7 x 1.7 in. (300 x 221 x 43.6 mm)
Housing	Galvanized
Body Color	Black
Net Weight	2.5 g

Environmental
Operating Temperature	32° to 131° F (0° to 55° C
Storage Temperature	-40° to 185° F (-40° to 85° C)
Relative Humidity	0 - 95% (non-condensing)

SKU

LTPOE-SW1602E
